Ideal for troubleshooting and calibrating current loop applications, this process meter is compatible with the Fluke Connect app, which enables compatibility technicians to wirelessly monitor, log, and share data from the field. This value added kit includes the REED CA-05A Soft Carrying Case, REED R2300 Infrared Thermometer & Fluke TPAK Magnetic Meter Hanger for FREE.
This process meter doubles your troubleshooting power and is Fluke Connect-enabled

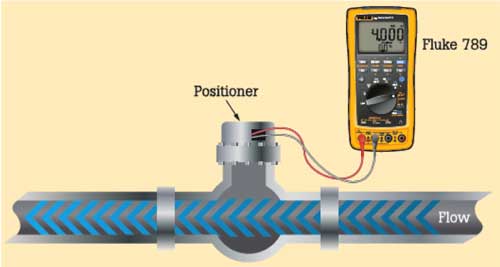

Ideal troubleshooting tool for electricians and instrumentation professionals, this process meter combines the functionality of a loop calibrator and the power of a digital multimeter. This instrument also comes supplied with the capabilities of Fluke Connect connectivity. Additionally, it comes equipped with a built-in selectable 250 Ω HART® resistor which eliminates the need to carry a separate resistor and large and bright display.
Comes equipped with a 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can add an optional temperature measurement module and the wireless data logging capabilities of the Fluke Connect™ mobile app to log data wirelessly to your smartphone and review it from a remote location. So now process technicians can do a lot more while carrying a lot less.
REED CA-05A Soft Carrying Case
REED R2300 Infrared Thermometer
This infrared thermometer features a 12:1 distance to spot ratio and is capable of measuring temperatures up to 752°F (400°C). The R2300 is an affordable non-contact measurement solution able to quickly and efficiently measure the temperature of hot, hazardous or hard-to reach objects from a safe distance.
Fluke TPAK ToolPak Magnetic Meter Hanger
|Range||0 to 1 A AC or DC|
|Accuracy||0.2% + 2 LSD (DC)|
|Range||0 to 30 mA|
|Accuracy||0.05% + 2 lSD|
|Range||0 to 20 mA or 4 to 20 mA|
|Resolution||0.05% of span|
|Drive Capability||24 V Compliance or 1200 Ω at 20 mA|
|Range||0 to 1000 V AC (True RMS) or DC|
|Resolution||0.1 mV to 1.0 V|
|Accuracy||0.1% Rdg + 1 LSD (VDC)|
|Frequency||To 19.999 kHz, 0.005% + 1 LSD|
|Continuity||Beeps for resistance <100 Ω|
|Resistance Measurement||To 40 MΩ, 0.2% + 1 LSD|
|Diode Test||2.0 V shoes diode voltage drop|
|Display Current and % of Span||Yes|
|Auto Step, Auto Ramp||Yes|
|Operating Temperature||-4 to 131°F (-20 to 55°C)|
|Storage Temperature||-40 to 140°F (-40 to 60°C)|
|Humidity (Without Condensation)||95% up to 86°F (30°C)
75% up to 104°F (40°C)
45% up to 122°F (50°C)
35% up to 131°F (55°C)
|Temperature Coefficient||0.05 x (specified accuracy) per °C (for temperatures <18°C or >28°C)|
|Electrical Safety||Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92|
|Overvoltage Category||IEC 1010-1 CAT III 1000 V
IEC 1010-1 CAT IV 600 V
|Maximum Voltage||1000 V RMS|
|Mechanical and General Specifications|
|Batteries||4 x AA Alkaline batteries|
|Battery Life||140 hours typical (measurement), 10 hours typical (sourcing 20 mA)|
|Shock and Vibration||Random, 2 g, 5 to 500 Hz
1 m drop test
|Dimensions||1.25 x 3.41 x 7.35" (50 x 100 x 203 mm)|
|Weight||1.6 lbs (610 g)|
The ultimate troubleshooting tool for electricians and instrumentation professionals, combining the functionality of a loop calibrator with the power of a digital multimeter.
Outside Dimensions (LxWxH): 9x 4 x 2" (228 x 102 x 51mm), Black polyester.
Fast responding entry-level infrared thermometer with min/max temperature readings and adjustable high/low temperature alarms.
Attaches to back of a Fluke 110/170/180 Series Meter, 20/70-III with integrated holster (with adapter), 724/725, and 50 Series II.
Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.
Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
