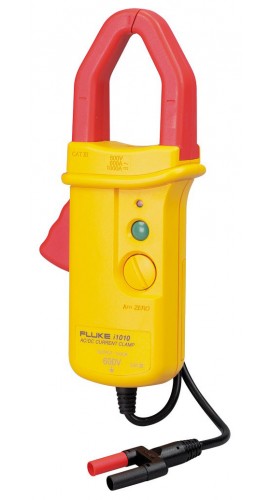

Fluke i1010 AC/DC Current Clamp

Model: I1010

Highly reliable, measures 1 to 1000 A, and provides accurate current reading without breaking the circuit. This clamp measures both AC and DC with a large jaw, battery-powered Hall-effect probe that gives access to difficult to reach areas.

Add In-House Traceable Calibration to your I1010


$391.49 USD

was $434.99

Availability:
4 in Stock
Need a quote?




Fluke I1010 Offers

Features

  • Battery-powered Hall-effect probe that extend the current ranges of Fluke tools, measuring DC current from 1 to 1000 A and AC current from 1 to 600 A
  • Provides accurate current reading without breaking the circuit
  • Compatible with most Fluke multimeters
  • CAT III 600 V safety rating

Fluke I1010 Specifications

Measurement Type Hall sensor
Nominal Current Range 600 A, AC, 1000 A, DC
Continuous Current Range 1 to 600 A, AC, 1 to 1000 A, DC
Maximum Non-Destructive Current 1000 A
Lowest Measurable Current 0.5 A
Basic Accuracy 2% + 0.5 A (% reading + floor spec)
Useable Frequency DC - 10 kHz
Output Level(s) 1 mV/A
Zero Error Adjustment Yes
Safety CAT III, 600 V
Maximum Voltage 600 V
Battery Life 9 V, 60 h
Output Cable Length 5.25' (1.6 m)
Click here for complete specifications on the Fluke I1010

What's included with the Fluke I1010

  • Fluke i1010 AC/DC Current Clamp
