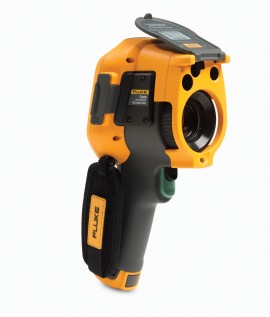

The Fluke Ti300 offers exceptional image quality and features as well as the versatility needed for thorough inspection, troubleshooting, and maintenance.
This product has been discontinued. Click here for the replacement model(s).
A new generation of tools with next generation performance.
The Newest Fluke infrared camera, equipped with LaserSharp™ Auto Focus. Every infrared camera user knows that focus is the single most important thing to ensure when conducting an infrared inspection. Without an in-focus image temperature measurements may not be accurate and it's much easier to miss a problem. LaserSharp auto focus tells you exactly where you are focusing. It uses a laser to calculate the distance to your target before it focuses. Place the red laser dot on the object you are inspecting, then pull and release the trigger for a perfect in-focus image.
ring your office to your inspection site with the
SmartView Mobile App. Create an inspection report
on site and communicate directly to your client or
manager via your Apple®
iPhone® or iPad®.
Optimize: Adjust the image to present problems in the most effective way.
Analyze: Use markers and other tools to quantify the severity of problems.
Communicate: Share inspection results by emailing images or reports to:
Fluke SmartView Mobile will increase the return on your infrared camera investment.
A free firmware update to help find problems fast will allow you to capture up to 5 additional measurements by enabling the CNX™ Wireless system* on your thermal imager. These additional measurements help diagnose problems faster and provide additional data to create more comprehensive reports.
Field installable telephoto and wide angle lenses are available for added versatility for special applications and voice annotation makes pen and paper no longer necessary.
|Temperature Measurement Range||-20 to 650°C (-4 to 1202°F)|
|Temperature Measurement Accuracy||±2°C or 2% (at 25°C nominal, whichever is greater)|
|Detector Type||Focal Plane Array, uncooled microbolometer, 240x180 pixels|
|Thermal Sensitivity (NETD)||≤0.05°C at 30°C target temp (50mK)|
|Infrared Spectral Band||7.5 to 14μm (long wave)|
|Visual (Visible Light) Camera||Industrial performance 5.0 megapixel|
|Field of View||24° x 17°|
|Spatial Resolution (IFOV)||1.75 mRad|
|Minimum Focus Distance||15cm (approx. 6")|
Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.
Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
Click on a category to view a selection of compatible accessories with the Fluke Ti300 60Hz Thermal Imaging Camera, 43200 PIxels (240 x 180).
