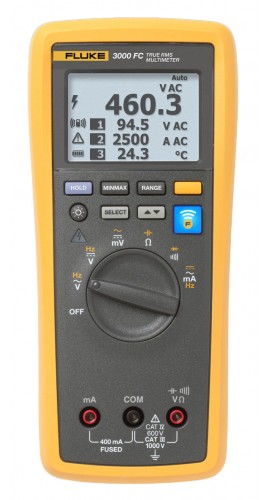

Fluke Connect 3000FC Wireless Digital Multimeter

Model: 3000FC

Part of the Fluke Connect team of wireless tools, capable of communicating with up to three modules at one time. Features a measurement range from 0.5A to 400A.

Add In-House Traceable Calibration to your 3000FC


1 to 2 Weeks

$269.99 USD

was $299.99

Need a quote?



Fluke Connect is the best way to stay in contact with your team without leaving the field.




Fluke 3000FC Digital Multimeter

The multimeter at the core of the Fluke Connect suite of tools.

The Fluke 3000FC Digital Multimeter is part of the Fluke Connect system of test tools, communicating with the new Fluke connect mobile app available for Android™ or iOS smart phones. The 3000FC wireless digital multimeter functions as the mobile hub, displaying readings from up to three module tools simultaneously from 20 meters away. Fluke Connect modules also give you the flexibility to build your wireless test tool system how you want it.

By seeing multiple measurements at the same time, troubleshooters can see cause and effect, interactions between inputs/outputs or other measurement points, simultaneously and remotely.For those who need to see more than 3 measurements at a time, the addition of the PC3000 FC Adapter allows for up to 10 modules to be viewed at any time on a PC.

The Fluke 3000FC is capable of measuring both AC and DC voltage as well as AC/DC current, meeting measurement category 1000V CAT III and Category IV 600V safety standards.

Fluke 3000FC Specifications

For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %. Accuracy specifications take the form of ± ([ % of Reading ] + [ Number of least significant digits ]).

AC voltage

Accuracy 2,3,4
Range1 Resolution 45 Hz to 500 Hz 500 Hz to 1 kHz
600.0 mV 0.1 mV 1.0 % + 3 2.0 % + 3
6.000 V 0.001 V
60.00 V 0.01 V
600.0 V 0.1 V
1000 V 1 V

1 All ac voltage ranges are specified from 1 % of range to 100 % of range.
2 Crest factor of < 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.
3 For non-sinusoidial waveforms, add ± (2 % of reading + 2 % full scale) typical, for crest factor up to 3.
4 Do not exceed 107 V-Hz.

DC voltage, continuity, resistance, diode test and capacitance

Function Range Resolution Accuracy
mV 600.0 mV 0.1 mV 0.09 % + 2
V 6.000 V 0.001 V 0.09 % + 2
60.00 V 0.01 V
600.0 V 0.1 V
1000 V 1 V 0.15 % + 2
Ω 600 Ω 1 Ω Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 µs or longer.
Ω 600.0 Ω 0.1 Ω 0.5 % + 2
6.000 kΩ 0.001 kΩ 0.5% + 1
60.00 kΩ 0.01 kΩ
60.00 kΩ 0.1 kΩ
600.0 kΩ 0.001 MΩ
50.00 MΩ 0.01 MΩ 1.5 % + 3
Diode test 2.000 V 0.001 V 1 % + 2
µF 1000 nF 1 nF 1.2 % + 2
10.00 µF 0.01 µF
100.0 µF 0.1 µF
9999 µF1 1 µF 10 % typical

1 In the 9999 µF range for measurements to 1000 µF, the measurement accuracy is 1.2 % + 2.

AC and DC current

Function Range1 Resolution Accuracy
mA AC (45 Hz to 1 kHZ) 60.00 mA 0.01 mA 1.5 % + 3
400.0 mA3 0.1 mA
mA DC2 60.00 mA 0.01 mA 0.5 % + 3
400.0 mA3 0.1 mA

1 All ac current ranges are specified from 5 % of range to 100 % of range.
2 Input burden voltage (typical): 400 mA input 2 mV/mA.
3 400.0 mA accuracy specified up to 600 mA overload.

Frequency

Range Resolution Accuracy [1]
99.99 Hz 0.01 Hz 0.1 % + 1
999.9 Hz 0.1 Hz
9.999 kHz 0.001 kHz
99.99 kHz 0.01 kHz

1 Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.

MIN/MAX Recording

Function Accuracy
DC functions The specified accuracy of the measurement function ± 12 counts for changes > 350 ms in duration.
AC functions The specified accuracy of the measurement function ± 40 counts for changes > 900 ms in duration.

General specifications (Not compatible with Fluke CNX test tools)

Maximum voltage between any terminal and earth ground 1000 V dc or ac rms
Ω fuse protection from A inputs 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
Display (LCD) Update rate: 4/sec
Votls, amps, ohms: 6000 counts
Frequency: 10,000 counts
Capacitance: 1,000 counts
Battery type Three AA Alkaline batteries, NEDA 15A IEC LR6
Battery life 250 hours minimum
RF communications 2.4 GHZ ISM Band
RF communication range Open air, unobstructed: Up to 20m
Obstructed, sheetrock wall: Up to 6.5m
Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5m
Temperature Operating: -10 °C to 50 °C
Storage: -40 °C to 60 °C
Temperature coefficient 0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
Relative humidity 0 % to 90 % (0 °C to 35 °C), 0 % to 75 % (35 °C to 40 °C), 0 % to 45 % (40 °C to 50 °C)
Altitude Operating: 2,000 m
Storage: 12,000 m
Electromagnetic compatibility EMI, RFI, EMC, RF EN 61326-1:2006, EN 61326-2-2:2006. ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249, FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
Safety compliance ANSI/ISA 61010-1 / (82.02.01): 3rd edition CAN/CSA-C22.2 No 61010-1-12: 3rd edition UL 61010-1: 3rd edition IEC/EN 61010-1:2010
Certifications CSA, FCC, CE
Ingress Protection (IP) rating IP54
Pollution Degree 2
Size (H x W x L) 4.75 cm x 9.3 cm x 20.7 cm (1.87 in x 3.68 in x 8.14 in)
Weight 340 g (12 oz)
Click here for complete specifications on the Fluke 3000FC

What's included with the Fluke 3000FC

  • Wireless Digital Multimeter
  • TL175 Test Leads
  • AC175 Alligator Clips
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

Accessories

Click on a category to view a selection of compatible accessories with the Fluke Connect 3000FC Wireless Digital Multimeter.

Fluke A3000 FC Wireless AC Current Clamp Module A3000FC
The A3000 FC Wireless Current Clamp Meter is a fully functional True-RMS current clamp meter that wirelessly relays AC measurements to any Fluke Connect system.
$179.99 USD

was $199.99


Learn More

Fluke A3001 FC Wireless iFlex AC Current Module A3001FC
The A3001 FC Wireless iFlex AC Current Module that wirelessly relays measurements to any Fluke Connect system.
$224.99 USD

was $249.99


Learn More

Fluke A3002 FC Wireless AC/DC Current Module A3002FC
Wirelessly receives and pass measurements from the i410 or i1010 AC/DC clamps accessories and other Fluke Connect™ enabled master units with this wireless AC/C current module.
$116.99 USD

was $129.99


Learn More

Fluke V3000 FC Wireless True-rms AC Voltage Module V3000FC
The V3000 FC Wireless Voltage Module measures true-rms AC voltage and relays measurements to any Fluke Connect master units
$184.49 USD

was $204.99


Learn More

Fluke V3001 FC Wireless DC Voltage Module V3001FC
The V3001 FC Wireless Voltage Module measures DC voltage and relays measurements to any Fluke Connect master units
$184.49 USD

was $204.99


Learn More

Fluke T3000 FC Wireless K-Type Temperature Module T3000-FC
Share test data through the Fluke Connect app when you pair this k-type temperature module with any other Fluke Connect remote modules. This allows you to access live readings without being exposed to the live panel. Additionally, you can identify temperature differences between the three phases.
$179.99 USD

was $199.99


Learn More

Fluke pc3000 FC Adapter and Software PC3000-FC
This USB adapter and software allows your PC or laptop to communicate with up to 10 Fluke Connect wireless devices.
$99.99 USD

Learn More
