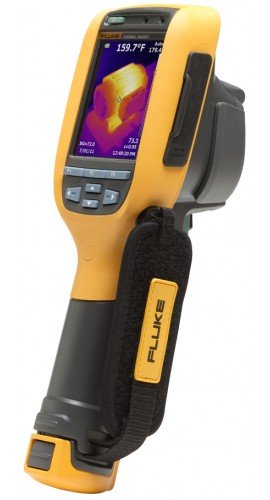

Fluke Ti100 9Hz Thermal Imaging Camera, 19200 Pixels (160 x 120)

Model: Ti100 | Order No: TI100-9HZ

The Fluke Ti100 is a lightweight, rugged, 160 x 120 infrared camera and features focus free infrared viewing.

This product has been discontinued. Click here for the replacement model(s).


Fluke Connect is the best way to stay in contact with your team without leaving the field.




This Product is Fluke Connect Enabled

Fluke's TiXX Series of Thermal Imagers are now compatible with the new Fluke Connect app and series of Wireless Test Modules.

The lightest, most rugged and easiest-to-use professional thermal imagers around
The Ti100 is a versatile general-purpose thermal imager designed specifically for the cost-conscious professional. It delivers incredible imaging at a great value and is an ultra-rugged, one-handed professional thermal imager.

Patented Fluke IR-Fusion® Technology
Enjoy the industry's only point-and-shoot IR-Fusion camera. Fluke patented technology provides the user with both a digital and an infrared image in one to precisely document problem areas.(This model offers Infrared Imaging only)

Features

Focus-Free Infrared
The Ti100 offers the highest performing one-handed, focus-free infrared system available. From four feet (1.2 M) and beyond you'll always be in good focus no matter what you're inspecting.

Laser Pointer
A laser pointer allows you to accurately point to an area of concern to a colleague or customer.

Built Rugged
The new Fluke imagers are the most rugged and reliable, lightweight professional point-and-shoot thermal imagers on the market. They've been put through a battery of tests, including two-meter drops, vibration, extreme temperature and humidity, and electromagnetic/radio frequency interference testing to ensure they survive in your environment.

One-hand Operation
The Ti100 has been designed for simple, one-handed operation. Its lightweight, slim profile makes it easy to operate in either landscape or portrait format - your choice. All so you'll have one hand free to steady yourself or hold another tool.

Fluke Ti100-9Hz Specifications

IFOV (Spatial Resolution) 3.39 mRad
Detector Resolution 160x120 (19,200 pixels)
Field of View 22.5°H x 31°V
Minimum Focus Distance 122cm (48")
Focus System Focus free (fixed focus)
Wireless Connectivity Fluke Connect app compatible with included wireless SD Card
Display 3.5" diagonal (portrait format)
Thermal Sensitivity (NETD) ≤ 0.10°C at 30°C target temp (100 mK)
Temperature Measurement Range -20 to 250°C (-4 to 482°F)
Built-in Digital Camera (visible light) None - IR only
Frame Rate 9Hz
Accuracy ±2°C or 2% (at 25°C nominal, whichever is greater)
On-screen Emissivity Correction Yes (both value and table)
Color Palettes 4 standard: Ironbow, Blue-Red, Amber, Grayscale
Click here for complete specifications on the Fluke Ti100

What's included with the Fluke Ti100-9Hz

  • Ti100 9Hz Thermal Imaging Camera
  • AC power adapter
  • Lithium ion smart battery
  • USB cable
  • SD Memory Card
  • Fluke Connect WiFi SD card
  • Hard carrying case
  • Soft transport bag
  • Adjustable hand strap
  • Printed users' manual in English, Spanish, French, German and Simplified Chinese, all other manuals on CD SmartView® software
  • Warranty registration card
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements
