Fluke 87V-MAX True RMS Digital Multimeter with built-in thermometer-
Downloads: datasheet manual

Ask an Expert

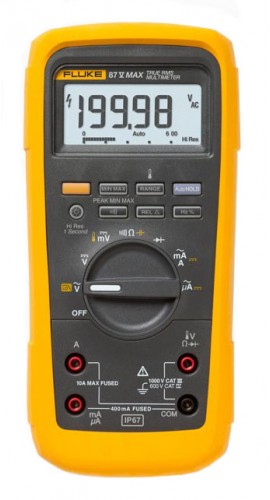

Fluke 87V-MAX True RMS Digital Multimeter with built-in thermometer

Model: 87V-MAX

Troubleshoot most electrical problems with this True RMS digital multimeter. This unit features an IP67 rating, making it waterproof and dustproof. Additionally, it is built to withstand a 13' (4 m) drop making it ideal for tough environments.

Traceable Calibration Certificate for your to your

$518.33 USD

was $635.99

Availability:
16 in Stock


Fluke 87V-MAX Offers

Troubleshoot most electrical problems with this True-rms multimeter capable of operating in temperatures from -40 to 131°F (-40 to 55°C). In addition, this multimeter features a low-pass filter for accurate measurements on VFDs and shielding to block readings from high-frequency and high-energy noise.

Features

  • True-rms AC voltage and current for accurate measurements on non-linear signals
  • Measure up to 1,000 V AC and DC
  • Measure up to 10 A (20 A for 30 seconds)
  • Frequency to 200 kHz
  • Built in temperate function conveniently allows you to take temperature readings without having to carry a separate instrument using supplied thermocouple
  • Minimum/maximum/average recording, plus 250 μs Peak minimum-maximum to capture variations automatically
  • Unique function for accurate voltage and frequency measurements on variable frequency motor drives (VFDs) and other electrically noisy equipment
  • Large display digits, 2-level bright white backlight and backlit keypad buttons for increased visibility
  • Hi resolution 19,999 count display mode
  • Long battery life (800 hours)

IP67 rated

Fully waterproof and dust proof, to work reliably in all the places that you need to work.

Withstands drops up to 13 feet (4 meters)

Fluke's most rugged digital multimeter. The 87V MAX is built with an industrial strength case and a removable holster. The holster doubles as a test probe holder for one-handed operation.

Works as long as you do

The 87V MAX provides double the battery life of the original 87V.

Withstands heat and cold

The meter has an extended operating temperature range of -40 (for up to 20 minutes) to 131°F [-40 (for up to 20 minutes) to 55°C].

Applications

  • Motor drives

Fluke 87V-MAX Specifications

Voltage DC:
Maximum resolution: 0.1 mV to 1000 V
Accuracy: 0.05 % + 1

AC:
Maximum resolution: 0.1 mV to 1000 V

Accuracy: 0.7 % + 4
Current DC:
Maximum resolution: 0.1 μA to 10 A to 1000 V
Accuracy: 0.2 % + 2

AC:
Maximum resolution: 0.1 μA to 10 A

Accuracy: 1.0 % + 2
Resistance Maximum resolution: 0.1 Ω to 50 MΩ
Capacitance 0.01 nF to 9999 μF
Frequency 0.5 Hz to 199.99 kHz
Temperature -328 to 1994°F (-200 to 10905°C)
Low Pass Filter (Measurement on VFDs) Yes
Peak Transient Capture 250 μs
Minimum/Maximum/Average Yes
Reading Hold Yes
Relative Readings (Zero) Yes
Safety Rating CAT IV 600 V/CAT III 1000 V
Display Bar graph/backlight
Drop Test 13' (4 m) drop test
Dustproof/Waterproof Yes, IP 67 rated
Power Type: Three AA batteries
Life: 800 hours
Dimensions 2.4 x 4.3 x 8.5" (6.0 x 10.1 x 21.5 cm)
Weight 1.54 lbs (698.5 g)
Click here for complete specifications on the Fluke 87V-MAX

What's included with the Fluke 87V-MAX

  • Digital Multimeter
  • Temperature Probe
  • Test Leads
  • Alligator Clips
  • Removable Holster with Test Lead Storage
  • 3 x AA Batteries (Installed)
  • Limited Lifetime Warranty
