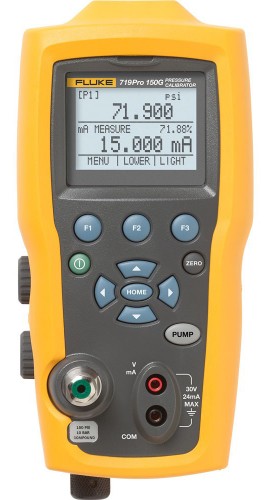

Fluke 719PRO-150G Electric Pressure Calibrator, 150 PSI/10 Bar

Model: 719PRO-150G

Full functioning loop calibrator that sources, simulates and measures mA signals and more making it the ideal test tool for calibrating high accuracy transmitters, pressure switches and pressure gauges.

Add In-House Traceable Calibration to your 719PRO-150G

6 to 7 Weeks

$3,809.99 USD

Need a quote?

Fluke 719PRO-150G Offers


  • Electric pump for one handed pressure calibration
  • Best in class pressure measurement uncertainty of 0.025%
  • Measure and source mA with best in class 0.015% accuracy
  • Precision pressure adjust vernier for accurate pressure calibration
  • Variable release rate bleed valve for easy pressure adjustment
  • Programmable pressure calibrator pump limit: eliminates over-pressurization and allows the user to program target pressures for pumping
  • Programmable 3-tiered display for maximum flexibility when displaying pressure, temperature, and electrical parameters of your choice
  • Display backlight
  • Damping, Min/Max, and % error function
  • Source mA with simultaneous pressure measurement to test valves and I/Ps
  • Simulate mA signals to troubleshoot 4-20 mA loops
  • Test pressure switches with built in switch test function

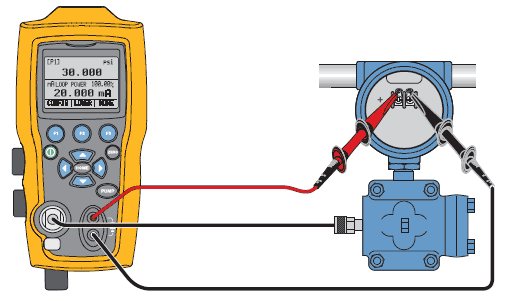

  • Power transmitters during test using 24 V loop supply with simultaneous mA measurement
  • Precision temperature measurement with the addition of an accessory RTD probe (available as an option)
  • Proven cleanout ports reduce pump failures
  • Moisture trap included with the unit helps mitigates risk of moisture damage


  • Petro-Chemical
  • Oil and Gas
  • Pharmaceutical
  • Water and wastewater
  • Food and Beverage
  • Power Generation

Application Selection Guide

Fluke 754 Documenting Process Calibrator with HART communication Fluke 721 Dual Sensor Pressure Calibrators Fluke 719PRO Electric Pressure Calibrators Fluke 719 Pressure Calibrator Fluke 718 Series Pressure Calibrators Fluke 717 Series Pressure Calibrators Fluke 700G Series Pressure Test Gauge Fluke 3130-G2M Portable Pneumatic Pressure Calibrators Fluke 2700G Series Pressure Gauges Fluke Deadweight Testers
Model number 754 721/​721Ex 719Pro 719 718 717 700G 3130 2700G Dead-weight Testers
Calibrating pressure transmitters (field) Ideal
Calibrating pressure transmitters (bench) Ideal
Calibrating HART Smart transmitters Ideal
Documenting pressure transmitter calibrations Ideal
Testing pressure switches in the field Ideal
Testing pressure switches on the bench Ideal
Documenting pressure switch tests Ideal
Testing pressure switches with live (voltage) contacts Ideal
Gas custody transfer computer tests Ideal
Verifying process pressure gauges (field) Ideal
Verifying process pressure gauges (bench) Ideal
Logging pressure measurements Ideal
Testing pressure devices using a reference gauge Ideal
Hydrostatic vessel testing Ideal
Leak testing (pressure measurement logging) Ideal
Pressure Calibration Selection Guide

Fluke 719Pro Specifications

Range -12 to 300 PSI / -0.8 to 20 bar
Resolution 0.01 PSI, 0.001 bar
Accuracy ± 0.025 % of full scale, 6 months ± 0.035 % of full scale, 1 year Dry Air and non-corrosive gas only
Temperature Effect
(all ranges)
Add ± 0.002 % F.S./°C for temps outside of 15 to 35°C
No effect on accuracy on all functions from 15 to 35°C
mA DC (simulation and measurement)
Range 0-24 mA DC
Resolution 0.001 mA
Accuracy ± 0.015 % of reading ± 2 counts
Max load in mA source 1000 ohm
Max  voltage in mA simulate 26 V DC
Volts DC (measurement only)
Range 30 V DC
Resolution 0.001 V
Accuracy ± 0.015 % of reading ± 2 counts
Notes No AC voltage measurement, do not exceed 30V DC
Temperature (measurement only, Pt100 RTD)
Range -50 to 150 °C (-50 to 302°F)
Resolution 0.01 to 0.01°F
Accuracy ± 0.1°C (0.2°F)
Loop power supply
Range 24 V DC
Accuracy 24 mA at 24 V
Temperature Effect (all functions)
Accuracy Add ± 0.002 % F.S./°C for temps outside of 15 to 35°C
No effect on accuracy on all functions from 15 to 35°C
Pressure 1/8 inch female NPT
Electrical Standard banana jacks
RTD 4 pin miniature circular
External module 6 pin miniature circular
Power Requirements
Battery Eight (8) standard Alkaline AA batteries
Battery life 300 pump cycles to 150 PSI minimum; 1000 pump cycles to 30 PSI; 100 pump cycles to 300 PSI minimum
Dimensions (HxWxD) 24.13 cm x 11.18 cm x 7 cm (9.5 in x 4.4 in x 2.8 in)
Weight With holster 1.2 kg (2.5 lb)

What's included with the Fluke 719PRO-150G

  • Fluke 719PRO-150G Electric Pressure Calibrator
  • Test leads with alligator clips
  • Printed user's manual and user's manual on CD-ROM in 14 languages
  • Fluid trap
  • Carrying case
  • 1/4 inch NPT to 1/4 inch ISO adapter
  • Accessory hose kit with (2) 1/8 inch quick fit adapters and 1 meter of hose
  • Traceable Certificate of Calibration


Click on a category to view a selection of compatible accessories with the Fluke 719PRO-150G Electric Pressure Calibrator, 150 PSI/10 Bar.

Fluke 71XTrap Liquid and Dirt Trap 71X-TRAP
Liquid and dirt trap for use with Fluke 718 and 719Pro.
