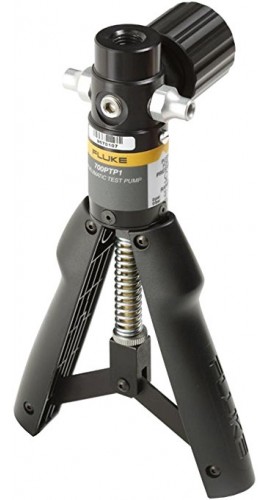

Fluke 700PTP-1 Pneumatic Test Pump

Model: 700PTP-1

The Fluke 700PTP-1 pneumatic test pump is capable of supplying pressures up to 600 psi. For use with 700 series pressure modules or test gauges.

$719.99 USD

was $799.99

Availability:
3 in Stock
Need a quote?




Fluke 700PTP-1 Offers

Can be directly connected to the reference port consolidating two separate pieces when performing pressure calibration and testing. Can also be used with 717 pressure calibrators. Ideal for calibrating pressure transmitters, pressure switches and pressure gauges up to 600 PSI/40 bar.

The Fluke 700PTP-1 features an integral pressure adjustment vernier which varies the pressurized volume by 2.0 cc over approximately eleven turns of the vernier knob. The pressure variation achievable with the vernier will depend on the nominal pressure and total pressurized volume, but with a minimum volume and maximum pressure, the vernier provided 360 - 20 psi adjustment range. With a minimum volume and no pressure applied, the vernier can also be used to provide a 0 to 70" H2O range. Larger volumes will provide a smaller range of adjustment, but greater resolution. The length of the stroke can be adjusted to limit the maximum output pressure. Maximum output pressure is adjustable from 2.5 psi to 600 psi.

Features

  • Pump can be easily cleaned without disassembly
  • The vernier can be used as a stand-alone low pressure calibration source
  • Two pressure ports allowing simultaneous connection:
  • ¼ - NPT female fitting for the reference gauge or pressure module
  • ¼" NPT female fitting for the unit under test
  • Adjustable stroke length can be set to limit the pressure per stroke
  • 1st Pressure Port - 3/8-BSP (ISO228) female parallel thread fitting for the reference gauge or pressure module
  • 2nd Pressure Port - 1/8-BSP (ISO228) female parallel thread fitting for the unit under test

Applications

  • Pressure instrument calibration
  • Pressure instrument Maintenance
  • Petro-Chemical
  • Oil and Gas
  • Pharmaceutical
  • Water and wastewater
  • Food and Beverage
  • Power Generation

Fluke 700PTP-1 Specifications

Material Wetted materials: aluminum, silicon, neoprene, stainless steel, Buna-N
Size (L x W x D) length 8.7 in (220 mm), width 4.8 in (122 mm), depth 3.5 in (89 mm)
Weight 1.03 lb (467 g)
Click here for complete specifications on the Fluke 700PTP-1

What's included with the Fluke 700PTP-1

  • Fluke 700PTP-1 Pneumatic Test Pump
  • 1/4 in NPT male to 1/4 in BSP female
  • 1 meter of hose
  • (2) 1/8 in NPT male quick connects
  • 1/8 NPT female to 1/4 in BSP female
  • Seal Kit
  • Instruction sheet
