Model: 87V/E2 | Order No: 87-5/E2-KIT
Built around the True RMS industrial multimeter, this combo kit solves problems fast and deliver accurate and advanced troubleshooting capabilities that can handle complex signals. The kit includes accessories that increase the productivity of electricians.
The Fluke 87V offers accuracy and diagnostics for maximum industrial productivity in the tool box or on the bench.
The Fluke 87V multimeter has improved measurement functions, troubleshooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution, and electromechanical equipment.
With its newly incorporated selectable low pass filter, the Fluke 87V allows troubleshooters to take accurate voltage, current and frequency measurements on the output side of the drive at either the drive itself or the motor terminals.

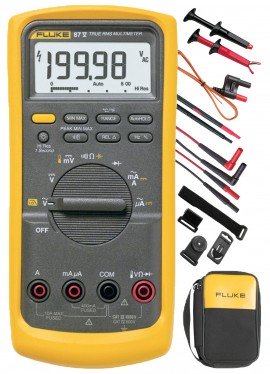

The Fluke 87V/E2 Industrial Electrician Combo Kit makes troubleshooting more productive with standard meter hanging accessory for handsfree operation, soft case for protection and storage, 1.5 m heat resistant silicone test leads and more.
Features for maximum productivity
All inputs are protected to Category III, 1000 V and Category IV 600 V. They can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes.
|Voltage DC||Max voltage: 1000 V
Accuracy: ±(0.05% + 1)
Maximum resolution: 10 µV
|Voltage AC||Max voltage: 1000 V
Accuracy: ±(0.7% + 2) True RMS
AC bandwidth: 20 kHz with low pass filter; 3 db @ 1 kHz
Maximum resolution: 0.1 mV
|Current DC||Maximum amps: 10 A (20 A for 30 seconds maximum)
Amps accuracy: ±(0.2% + 2)
Maximum resolution: 0.01 µA
|Current AC||Maximum amps: 10 A (20 A for 30 seconds maximum)
Amps accuracy: ±(1.0% + 2) True RMS
Maximum resolution: 0.1 µA
|Resistance||Maximum resistance: 50 MΩ
Accuracy: ±(0.2% + 1)
Maximum resolution: 0.1 Ω
|Capacitance||Maximum capacitance: 9999 µF
Accuracy: ±(1% + 2)
Maximum resolution: 0.01 nF
|Frequency||Maximum frequency: 200 kHz
Accuracy: ±(0.005% + 1)
Maximum resolution: 0.01 Hz
|Temperature Measurement||-328 to 1994°F (-200 to 1090°C) excluding probe|
|80 BK Temperature Probe||-40 to 500°F (-40 to 260°C), 2.2°C or 2% whichever is greater|
|Operating Temperature||-4 to 131°F (-20 to 55°C)|
|Storage Temperature||-40 to 140°F (-40 to 60°C)|
|Operating Altitude||6561' (2000 m)|
|Dimensions||7.9 x 3.9 x 2.05" (201 x 98 x 52 mm) with Holster|
|Weight||0.8 lb (355 g)|
|Battery life||Alkaline approximately 400 h typical, without backlight|
Solve problems fast and deliver accurate and advanced troubleshooting capabilities that can handle complex signals with this industrial multimeter.
These insulated test leads provide the convenience and variety for test lead configurations by attaching clips, hooks and grabbers as needed.
Designed to improve steadiness with rubber overmolded surfaces and finger-hugging curves. For use with TL222 and TL224 test leads.
Designed for high energy environments, this kit comes equipped with the TP238, TP280, and TL224.
Hang your meter in a variety of ways for convenient hands-free operation. Attaches to most Fluke meters.
Compatible with Fluke DMMs with temperature measurement functions.
The top opens laterally to allow use of test tool without removing it from the case and includes a Velcro® strap to secure the test tool. It is made of durable polyester 600D.
Click on a category to view a selection of compatible accessories with the Fluke 87V/E2 Industrial Electrician Combo Kit.
