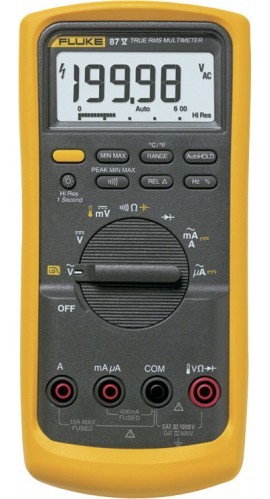

Model: 87-5 CAL
Ensure safety in the workplace with this calibrated True-RMS multimeter that offers functions to measure each relevant feature of the system to provide an accurate analysis of any potential problems. Additionally, it provides reliable measurements for industrial electrical systems.
The Fluke 87-5 CAL Industrial True-RMS Multimeter with calibration certificate provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment - even in loud, high-energy, and high-altitude locations. This multimeter is designed so you can work more efficiently.
In addition, this multimeter lets you identify complex electrical problems fast. It supports accurate measurements on VFDs using a low-pass filter. The meter also captures intermittents as fast as 250 µS using Peak Capture. High-frequency, high-energy noise generated by large drive systems is blocked from your measurements with specially designed shielding.
Features
Built to highest safety standards
All the inputs are updated to the third edition of the EN 61010-1 to CAT III 1000 V and CAT IV 600 V. The meter is designed to withstand spikes of more than 8000 V. You also benefit from an audible Input Alert warning if the test leads are placed in the incorrect input jacks for the measurement being made.
Removable holster with built in test lead and probe storage for convenience
This industrial True-RMS multimeter has a removable holster that also holds a test probe during testing for easier viewing. Relative mode lets you remove test lead resistance, improving the accuracy of low-resistance measurements. To make your life even easier, the 87 V fits into an optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks.
Applications
| Voltage | DC Maximum voltage: 1000 V Accuracy: ±(0.05% + 1) Maximum resolution: 10 µV AC Maximum voltage: 1000 V Accuracy: ±(0.7% + 2) True RMS AC bandwidth: 20 kHz with low pass filter; 3 dB at 1 kHz Maximum resolution: 0.1 mV |
| Current | DC Maximum amps: 10 A (20 A for 30 seconds maximum) Amps accuracy: ±(0.2% + 2) Maximum resolution: 0.01 µA AC Maximum amps: 10 A (20 A for 30 seconds maximum) Amps accuracy: ±(1% + 2) True RMS Maximum resolution: 0.1 µA |
| Resistance | Maximum resistance: 50 MΩ Accuracy: ±(0.2% + 1) Maximum resolution: 0.1 Ω |
| Capacitance | Maximum capacitance: 9,999 μF Accuracy: ±(1% + 2) Maximum resolution: 0.01 nF |
| Frequency | Maximum frequency: 200 kHz Accuracy: ±(0.005% + 1) Maximum resolution: 0.01 Hz |
| Duty Cycle | Maximum duty cycle: 99.9% Accuracy: ±(0.2% per kHz + 0.1%) Maximum resolution: 0.1% |
| Temperature | Measurement: -328 to 1994°F (-200 to 1090°C) excluding probe 80 BK temperature probe: -40 to 500°F (-40 to 260°C), 3.96°F (2.2°C) or 2% whichever is greater |
| Conductance | Maximum conductance: 60.00 nS Accuracy: ±(1% + 10) Maximum resolution: 0.01 nS |
| Diode | Range: 3 V Resolution: 1 mV Accuracy: ±(2% + 1) |
| Duty Cycle Range | Accuracy: Within ±(0.2% per kHz + 0.1%) |
| Display | Digital 6000 counts, updates 4/seconds 19,999 counts, in high-resolution mode Analog 32 segments, updates 40/second Frequency: 19,999 counts, updates 3/seconds at >10 Hz |
| Safety Specifications | Overvoltage category EN 61010–1 to 1000 V CAT III, 600V CAT IV |
| Agency Approvals | CE, CSA, RCM |
| Shock | 3.28' (1 m) drop per IEC 61010–1:2001 |
| Vibration | Per MIL–PRF–28800 for a Class 2 instrument |
| Humidity (without condensation) | 32 to 95°F (0 to 35°C): 0 to 90% 95 to 131°F (35 to 55°C): 0 to 70% |
| Environmental Conditions | Operating temperatur:e -4 to 131°F (-20 to 55°C) Storage temperature: -40 to 140°F (-40 to 60°C) Operating altitude: 6561.68' (2000 m) |
| Battery Life | Alkaline approximaltely 400 hours typical, without backlight |
| Dimensions | 7.91 x 3.86 x 2.05" (201 x 98 x 52 mm) with holster |
| Weight | 12.52 oz (355 g) 22.01 oz (624 g) with holster |
