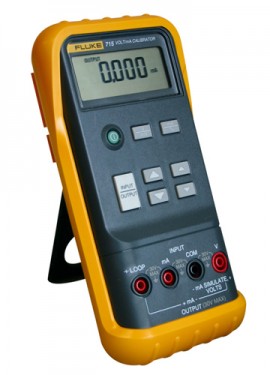

Fluke 715 Offers
The Fluke 715 Volt/mA Calibrator offer a clear new choice in single-function calibrators.
This hand-held calibrator delivers outstanding performance, durability and reliability. Offered in a rugged package, the calibrator is compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Documenting Process Calibrators, the Fluke 715 is easy to use.
The Fluke 715 Volt/mA calibrator is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.
To compare Loop Calibrators, see the
Fluke 705 and the
Fluke 707
Fluke 715 Specifications
| Function specifications |
| Measure / Source mV | | Range: | 0 to 100 mV | | Resolution: | 0.01 mV | | Accuracy | 0.02% + 2 counts |
|
| Measure / Source V | | Range: | 0 to 10 V | | Resolution: | 0.001 V | | Accuracy: | 0.02% + 2 counts |
|
| Measure / Source/ Simulate mA (% of span) | | Range: | 0 to 24 mA (-25% to 125%) | | Resolution: | 0.001 mA | | Accuracy | 0.015% + 2 counts |
| Note: Sink (simulate transmitter) Display mA or % of span |
|
| Specifications |
| Loop Power | | Range | 24 V dc | | Accuracy: | +/- 10% |
| Note: Drive; 20 mA into 1000 Ω for battery >6.8V; 700 Ω for battery 5.8 to 6.8 V |
|
| Display | |
| Environmental Specifications |
| Operating temperature | |
| Storage temperature | |
| Humidity (Without Condensation) |
| 95% (10 °C to 30 °C) |
| 75% (30 °C to 40 °C) |
| 45% (40 °C to 50 °C) |
| 35% (50 °C to 55 °C) |
|
| Operating Altitude | |
| Safety Specifications |
| Safety |
| CSA C22.2 No. 1010.1:1992 |
|
| Mechanical & General Specifications |
| Size |
| 187 mm L x 87mm W x 32 mm |
| (7.93 in. L x 3.86 in. W x 2.06 in D) |
|
| Weight | |
| Warranty | |
| Shock & Vibration |
| Random, 2G, 5-500 Hz |
| 1m drop test |
|
| Battery type |
| Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline |
|
Click here for complete specifications on the Fluke 715
What's included with the Fluke 715
- Protective Yellow Holster with Test Lead Storage
- Instructions Sheet (14 languages)
- single 9V alkaline battery
- Test Leads and Alligator Clips
