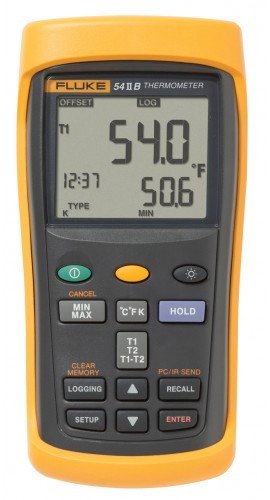

Model: 54-II-B | Order No: 54-2-B
Measure contact temperature on motors, insulation, breakers, pipes, corroded connections, liquids, and wires with industrial standard J, K, T, E, N, R, or S-type thermocouple temperature sensors. Additionally, this dual input digital thermometer logs up to 500 points of data with user adjustable recording intervals.
Features
Applications
| Temperature Accuracy | |
| Above -100°C | J, K, T, and E-type: ±[0.05% + 0.3°C] R and S-type: ±[0.05% + 0.4°C] |
| Below -100°C | J, K, and E: ±[0.20% + 0.3°C] T-type: ±[0.50% + 0.3°C] |
| Temperature | |
| J-Type | -346 to 2192°F (-210 to 1200°C) |
| K-Type | -328 to 2501.6°F (-200 to 1372°C) |
| T-Type | -418 to 752°F (-250 to 400°C) |
| E-Type | -238 to 1832°F (-150 to 1000°C) |
| N-Type | -328 to 2372°F (-200 to 1300°C) |
| R and S-Type | 32 to 3212.6°F (0 to 1767°C) |
| Temperature Scale | ITS-90 |
| Applicable Standards | NIST-175 |
| Display Resolution | 0.1°C, 0.1 K <1000 1°C, 1 K ≥1000 |
| Environmental Specifications | |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -40 to 140°F (-40 to 60°C) |
| Humidity (Without Condensation) | 0 to 90%; 32 to 95°F (0 to 35°C) 0 to 70%; 32 to 122°F (0 to 50°C) |
| Mechanical and General Specifications | |
| Batteries | 3 x batteries Typical 1000-hour life |
| Dimensions | 6.8 x 3.4 x 1.5" (173 x 86 x 38 mm) |
| Weight | 0.9 lbs (400 g) |
| Safety Specifications | |
| Overvoltage Category | CSA C22.2 No. 1010.1 1992; EN 61010 Amendments 1,2 |
| Agency Approvals | CE, CSA, TÜV (pending) |
Click on a category to view a selection of compatible accessories with the Fluke 54-2-B Dual Input Digital Thermometer with data logging.
