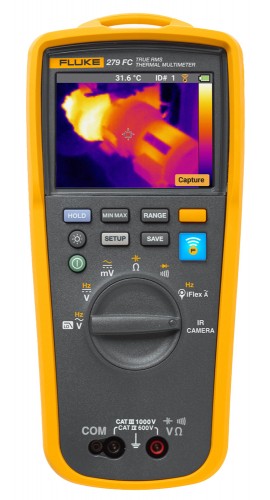

This digital multimeter features an integrated thermal imager which reveals electrical issues rapidly and from a safe distance. The thermal multimeter helps you locate, repair, validate, and report many electrical issues quickly so that you can be confident problems are solved. The large full-color LCD display makes viewing images and readings easy and clear while the rechargeable battery lasts up to 10 hour+ under normal conditions. iFlex® Compatible (a flexible current clamp), great for getting into tight, hard to reach spaces for current measurement (up to 2500 A AC). With built-in Fluke Connect®, results are transmitted wirelessly to a smartphone. Create and email reports right from the field.
This product has been discontinued. Click here for the replacement model(s).
Thermal imaging multimeters are a first-line tool for troubleshooting electrical equipment. They can check hot spots on high-voltage equipment and transformers, detect heating of fuses, wires, insulators, connectors, splices and switches. By combining two tools into one, the thermal multimeter reduces carry weight and increases productivity. Improve troubleshooting by trending and monitoring measurements instantly, live on your smartphone screen.
Discover your Thermal Imager
|Temperature Range||14 to 392°F (-10˚C to 200°C)|
|Temperature Measurement resolution||0.1°C|
|Accuracy||±5˚C or ± 5% (as tested at 25˚C, whichever is greater)|
|Resolution||80 x 60|
|Image capture frequency||8 Hz|
|Detector type||Uncooled vanadium oxide||General specifications|
|Maximum voltage between any terminal and earth ground||1000 V|
|Display size||8.9cm (3.5in) diagonal|
|Display (LCD) Update rate||4/sec|
|Display Volts, amps, ohms||6000 counts|
|Display Frequency||10000 counts|
|Battery type||Fluke BP500 lithium ion battery|
|Battery life||10 hours minimum|
|RF communications||2.4 GHZ ISM Band|
|Operating/Storage Temperature||14 to 122°F (0 to 50°C)/ -4 to 140°F (20 to 60°C)|
|Operating/Storage Altitude||2000m/ 12000m|
|Certifications||CSA, FCC, CE|
|Size (H x W x L)||5.7cm x 9.4cm x 21.6cm (2.3in x 3.7in x 8.5in)|
|Weight||0.80 kg (1.75 lb)|
Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.
Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
