Fluke 115-NIST True RMS Digital Multimeter, -

Downloads: datasheet manual

Ask an Expert

includes Traceable Calibration Certificate

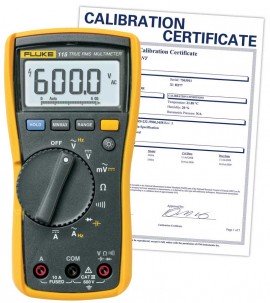

Fluke 115-NIST True RMS Digital Multimeter, includes Traceable Calibration Certificate

Model: 115-NIST | Order No: 115/EFSP-NIST

Ideal for electrical and electronic testing applications, this True RMS meter also comes equipped with simple, one-handed operation and compact design.

Fluke 115-NIST Offers

The compact, general purpose troubleshooting tool for field service technicians

Ideal for general purpose electrical and electronic test requirements, this True RMS digital multimeter also provides simple, one-handed operation and compact design for field service technicians. This tool measures the True RMS voltage as well as currents with 6000 count, resistance, continuity, frequency, and capacitance for quick verifications. Additionally, this digital multimeter is independently tested for safe use in CAT III 600V environments.

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

Measures resistance, continuity, frequency, capacitance, and diode test
Measures 10 A (20 A overload for 30 seconds)
Large white LED backlight to work in poorly lit areas
Compact ergonomic design for one-handed operation
Compatible with optional magnetic hanger (ToolPak™)
True RMS for accurate measurements on non-linear loads
Min/max/average with elapsed time to record signal fluctuations
CAT III 600 V safety rated
Measures AC and DC voltage to 600 V

Applications

Electrical and electronic testing
Quick verification and field service

Fluke 115-NIST Specifications

DC Millivolts
Range	600 mV
Resolution	0.1 mV
Accuracy	0.5% + 2
DC Volts
Range	6 V 60 V 600 V
Resolution	0.001 V 0.01 V 0.1 V
Accuracy	0.5% + 2
Auto Volts
Range	600 V
Resolution	0.1 V
Accuracy	2.0% + 3 (dc 45 to 500 Hz) 4.0% + 3 (500 Hz to 1kHz)
AC Millivolts1 True RMS
Range	600 mV
Resolution	0.1 mV
Accuracy	1.0% + 3 (dc 45 to 500 Hz) 2.0% + 3 (500 Hz to 1kHz)
AC Volts¹ True RMS
Range	6 V 60 V 600 V
Resolution	0.001 V 0.01 V 0.1 V
Accuracy	1.0% + 3 (dc 45 to 500 Hz) 2.0% + 3 (500 Hz to 1kHz)
Continuity
Range	600 Ω
Resolution	1 Ω
Accuracy	Beeper on <20 off> 250; detects opens or shorts of 500 µs or longer
Ohms
Range	600 Ω 6 kΩ 60 kΩ 600 kΩ 6 MΩ 40 MΩ
Resolution	0.1 Ω 0.001 kΩ 0.01 kΩ 0.001 MΩ 0.01 MΩ
Accuracy	0.9% + 2 0.9% + 1 5% + 2
Diode Test
Range	2 V
Resolution	0.001 V
Accuracy	0.9% + 2
Capacitance
Range	1000 nF 10 µF 100 µF 9999 µF 100 to 1000 µF >1000 µF
Resolution	1 nF 0.01 µF 0.1 µF 1 µF
Accuracy	1.9% + 2 1.9% + 2 5% + 20
Lo-Z capacitance
Range	1 nF to 500 µF
Accuracy	10% + 2 typical
AC Amps True RMS (45 to 500 Hz)
Range	6 A 10 A 20 A overload for 30 seconds max
Resolution	0.001 A 0.01 A
Accuracy	1.5% + 3
DC Amps
Range	6 A 10 A 20 A overload for 30 seconds max
Resolution	0.001 A 0.01 A
Accuracy	1.0% + 3
Hz (V or A Input)²
Range	99.99 Hz 999.9 Hz 9.999 kHz 50.00 kHz
Resolution	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz
Accuracy	0.1% + 2

Click here for complete specifications on the Fluke 115-NIST

What's included with the Fluke 115-NIST

Multimeter
Traceable Calibration Certificate with full Data and Uncertainties
Test Leads
Holster
9 V Battery
User Manual
Three-Year Warranty
