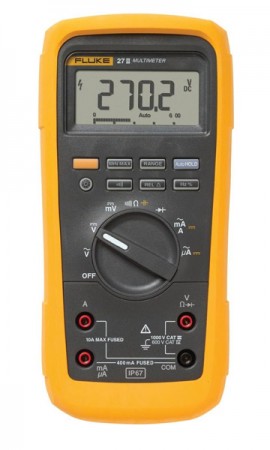

Fluke 27-II Industrial Multimeter with IP67 rating

Model: 27-II

Highly durable AC/DC digital multimeter that offers IP67 waterproof and dustproof protection and can withstand a 10ft/3m drop test and comes with a limited lifetime warranty. Ideal for harsh industrial applications.

Traceable Calibration Certificate for your 27-II Industrial Multimeter with IP67 rating

1 to 2 Weeks

$593.31 USD

was $727.99



Fluke 27-II Offers

The new standard for rugged

Fluke 27 II and Fluke 28 II digital multimeters define a new standard for operating in harsh conditions with the features and accuracy to troubleshoot most electrical problems. Both meters have IP 67 (waterproof and dustproof) rating, MSHA approvals (pending), extended operating temperature range of -15 °C to +55 °C (5 °F to 131 °F, -40 °C for up to 20 minutes) and 95 % humidity, and have been designed and tested to withstand a 3 m (10 ft) drop. The new Fluke 20 Series Multimeters are built to work in the toughest environments.
  • Measure up to 1000 V ac and dc
  • Measure up to 10 A (20 A for 30 seconds)10,000 μF capacitance range
  • Frequency to 200 kHz
  • Extended ac voltage bandwidth - 40 Hz to 30 kHz
  • Resistance, continuity and diode test
  • Min/Max and average recording to capture variations automatically
  • IP 67 waterproof & dustproof protection, completely sealed for use in harsh environments
  • Designed to withstand 3 meter drop (with holster)
  • Average responding voltage and current for measurements (Fluke 28-II is TRMS)
  • Backlit keypad buttons allow for easy visibility in lowlit areas
  • Large display digits and 2 level bright white backlight for increased visibility
  • Reversible holster for added protection when not in use
  • Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
  • Long battery life (800 hours)
  • Relative mode to remove test lead resistance from low ohms measurements
  • Auto and manual ranging for maximum flexibility
  • Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
  • MSHA approval (pending)
Note: for a TRMS version of this Fluke 27-II that also includes built-in temperature measurement and a unique Low Pass filter for measuring accurate readings when working on variable speed drives (VFDs/VSDs) see the Fluke 28-II industrial multimeter.

Fluke 27-II Specifications

DC Voltage Range 0.1 mV to 1000 V
DC Voltage Accuracy 0.1 % +1
AC Voltage Range 0.1 mV to 1000 V
AC Voltage Accuracy 0.5 % +3
DC Current Range 0.1 µA to 10 A
DC Current Accuracy 0.2 % + 4
AC current Range 0.1 µA to 10 A
AC Current Accuracy 1.5 % + 2
Resistance Range 0.1 Ω to 50 MΩ
Safety CAT IV 600 V, CAT III 1000
Dimensions 8 x 3.75 x 2.2" (203 x 95 x 56 mm)
Weight 1.6 lb (0.75 kg)
Click here for complete specifications on the Fluke 27-II

What's included with the Fluke 27-II

  • Fluke 27-II Industrial Multimeter with IP67 rating
