Designed for use in high energy environments like those found on hybrid vehicles, and comes equipped with standard multimeter features like the ability to measure voltage, current, continuity, and resistance. Additionally, this multimeter can also perform diode tests and pulse width measurements.

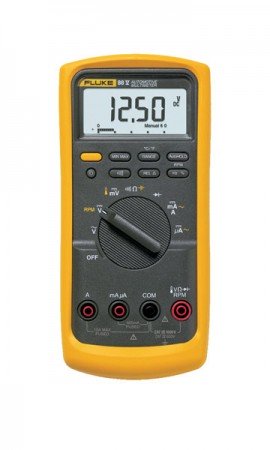

The Fluke 88V has improved measurement functions, trouble-shooting features and accuracy to solve more problems on conventional and hybrid vehicles. The 88V is the most powerful automotive multimeter ever offered by Fluke. In addition to having all standard multimeter features like the ability to measure voltage, current, continuity, and resistance, the 88V can perform diode test and pulse width measurements.
This meter can take current measurements up to 20A for 30 seconds and 10A continuously. The optional magnetic hanger lets you attach the meter to most steel surfaces for easy set-up and viewing. The 88V is designed to be used in high energy environments like those found on hybrid vehicles.
Resistance, continuity and diode test
Millisecond pulse width measurements for fuel injectors
Frequency to 200 kHz and % duty cycle
Measure up to 1000 V ac and dc
Measure current up to 10 A, 20 A for up to 30 seconds
4 ½ digits for precise measurements
RPM measurements with optional inductive pickup
Temperature measurements with optional temperature probe
Fluke 88-5 Specifications
±(0.1% + 1)
±(0.5% + 2)
±(0.4% + 2)
±(1.2% + 2)
±(0.4% + 1)
±(1% + 2)
±(0.005% + 1)
Maximum Duty Cycle
Within 2% per kHz + 0.1%
-328 to 1994°F (-200 to 1090°C), 1% excluding probe
Fluke: How-To Check Power Quality With A Multimeter
This video will serve as a how-to on checking the power quality with a multimeter; specifically the 87V. One of the ways to check the power quality, is by using the peak Min/Max.
Fluke: How-To Configure A Multimeter To Use AC And AC/DC Current Clamps
This video will serve as a how-to on extending the life of your Fluke multimeter by using AC and AC/DC current capabilities. The step-by-step process shown here will have you configuring your instrument in no time at all!
Fluke: How-To Test Fuses in A Multimeter
This video will serve as a how-to on testing fuses in multimeters; specifically the 87V & 233. Without having to open the case, you can change your setting to the Ohm function and jump from the Ohm jack to the Amp jack to measure across the fuse and see its continuity.
Fluke: What Is Peak MIN/MAX and How Do I Use It
If you have a multimeter, you need to know what peak Min/Max is. This video explains this feature using the 87V multimeter.
Click on a category to view a selection of compatible accessories with the Fluke 88-5 Deluxe Automotive Multimeter.
A dual-range of 20 A and 200 A ac current clamp with voltage output via a safety insulated BNC connector. A dual banana to BNC adapter is supplied to allow the clamp to be connected to multimeters with banana inputs.
