Fluke 718EX-30 Offers
Compact and professional pressure calibration tools.

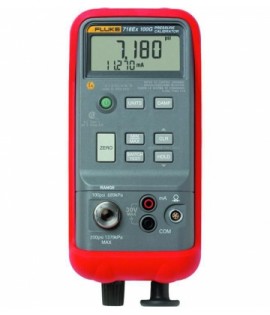

Fluke 718Ex-30G Pressure Calibrator is a new compact, lightweight and easy to carry calibrator that delivers outstanding performance, durability, reliability and is powerful intrinsically safe, self contained pressure calibrator for usage in Explosion endangered areas. The Fluke 718Ex Calibrator is EMI tolerant, dust and splash resistant and features a removable battery door for quick battery changes.
The Fluke 718Ex simultaneously measures pressure and mA and delivers 24 volt loop supply while measuring mA. The Fluke 718Ex provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
This new Pressure Calibrator presents cost-effective solutions for highly accurate pressure measurements over a wide range of temperatures. Connect it with any of the Fluke pressure modules to address a wide variety of gage, differential, absolute, vacuum and dual (compound) pressure applications.
Measure:
* Temperature from Thermocouple output
* Loop Current
* Pressure, 0.05% of full scale
* Temperature from RTD output
* Pressure to 10,000 psi/69 mPa using one of 29 Fluke pressure modules
* Pressure, 0.05% of full scale with internal 30 psig sensor
Fluke 718EX-30 Specifications
| Measurement Accuracy |
| Pressure |
| Fluke 718Ex 30G |
|
| Range |
-830 mbar to 2 bar (internal sensor) |
|
Over pressure: 3x FS |
| Resolution |
0.0001 bar |
| Accuracy |
0.05% FS |
| Functions |
Zero, Min, Max, Hold, Damp |
|
Note: for use with non-corrosive gasses |
| Fluke 718Ex 100G |
|
| Range |
-830 mbar to 7 bar (internal sensor) |
|
Over pressure: 2x FS |
| Resolution |
0.001 bar |
| Accuracy |
0.05% FS |
| Functions |
Zero, Min, Max, Hold, Damp |
|
Note: for use with non-corrosive gasses |
| Fluke 718Ex series |
|
|
via pressure module connector |
| Range |
29 pressure modules, 2.5 mbar to 700 bar |
|
Over pressure per pressure module specs |
| Resolution |
Per pressure module specs |
| Accuracy |
To 0.025% of full span, per pressure module specs |
| Functions |
Zero, Min, Max, Hold, Damp |
|
Note: media compatibility per pressure module specs |
| Source Pressure, built in pump |
|
| Range |
-820 mbar to full scale |
| Note |
Supported Pressure Units PSI, in. H2O (4 °C), in. H2O (20 °C), kPa, cm H2O (4 °C), |
|
cm H2O (20 °C), bar, mbar, kg/cm2, mmHg, in Hg |
|
| Technical Data |
| Measure Accuracy |
| Range |
0-24 mA
|
| Resolution |
0.001 mA |
| Accuracy |
0.02% rdg ± 2 counts |
|
| Display |
|
LCD, 5 digit pressure and current simultaneous |
|
| Environmental Specifications |
| Operating temperature | |
| Storage temperature | |
| Humidity (Without Condensation) |
|
95% (10°C to 30°C) |
|
75% (30°C to 40°C) |
|
45% (40°C to 50°C) |
|
35% (50°C to 55°C) |
|
| Operating Altitude | |
| Safety Specifications |
| Safety |
|
ATEX II  1G EEx ia IIC T4 compliant |
|
CSA Certification I.S. Class I, |
|
Div 1 Groups A-D , T4 |
|
| Mechanical & General Specifications |
| Size |
|
216 mm L x 94 mm W x 66 mm H (with holster) |
|
| Weight |
|
Approx. 992 g (with holster) |
|
| Warranty | |
| Shock | |
| Vibration | |
| Battery type |
|
One 9-volt alkaline battery ANSI/NEDA 1604A or IEC 6LR619V |
|
Battery life: 4 to 20 hours, depending on functions used |
|
Click here for complete specifications on the Fluke 718EX-30
What's included with the Fluke 718EX-30

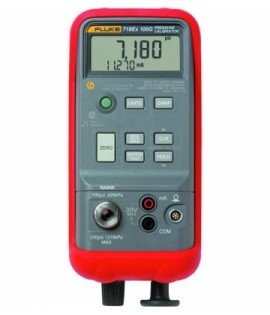

- Fluke 718Ex-30G Intrinsically Safe Pressure Calibrator
