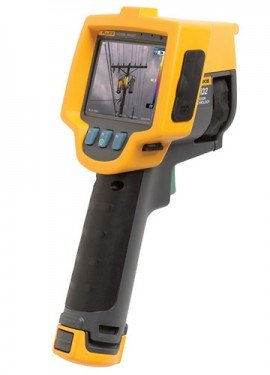

Fluke Ti32 60Hz Industrial Commercial Thermal Imager, 320 x 240

Model: TI32 | Order No: TI32-60HZ

320 x 240 Resolution infrared thermal imager that's rugged enough to withstand a 6.5 foot drop. IR-Fusion® and SmartView analyzing and reporting software included with every model. Clear, crisp images find problems fast.

This product has been discontinued. Click here for the replacement model(s).





Fluke Ti32 Thermal Imager

Fluke is excited to announce the addition of a new high-performance thermal imager for electrical/industrial applications to our portfolio of rugged, reliable, and easy to use imagers. The new Fluke Ti32 thermal imager combine a powerful 320x240 FPA sensor with field upgradeable lenses, removable batteries, and many new features. Built on the award winning design of the Fluke Ti25 family, these new imagers deliver amazingly clear image quality in a package that will withstand the toughest environments. Intended for industrial applications the Fluke Ti32 allows customers to find, fix and prove problems and repairs fast. In these tough economic times, we all have to do more with less. These new imagers help our customers do exactly that.

  • Award-winning Ti25/TiR1 design
  • 320X240 FPA
  • 60HZ refresh rate
  • Industry-leading ≤50mK thermal sensitivity (NETD) to see even the smallest temperature differences that could indicate a problem
  • Expanded temperature measurement -20 °C to +600 °C
  • Two (2) replaceable, rechargeable Li-Ion batteries for extended use situations
  • External charging bay or in imager charging
  • Field-installable optional telephoto and wide-angle lenses
  • New features:
  • High temperature or dew point alarms
  • Transmissivity correction
  • Better level/span adjustment
  • Thumbnail view memory
  • New display options
  • Ultra-Contrast™ palette options
  • .IS2, .BMP, and .JPG File formats on imager
  • Imager information

Patented Fluke IR-Fusion® Technology both in camera and software combines visible (visual) image with IR image in full screen or picture-in-picture views for easy identification and reporting of problemsRugged and reliable: Engineered to withstand a 2 meter (6.56 feet) drop640 x 480 large 3.6" diagonal color LCD display (landscape format)SmartView® analysis and reporting software (with free upgrades through life of product)Removable 2 GB SD memory card for easy storage and transfer of thermal and visible imagesMulti-function memory card readerComplete solution includes hardware and software to get you goingTwo-year warrantyExtended service and warranty options.

Fluke Ti32-60Hz Specifications

IFOV (Spatial Resolution) 1.25 mRad
Detector Resolution 320x240 (76,800 pixels)
Field of View 23°H x 17°V
Minimum Focus Distance 15cm (6")
IR-Fusion Technology IR-Fusion AutoBlend mode and Picture-in-Picture
Display 3.7" diagonal (portrait format)
Thermal Sensitivity (NETD) ≤0.045°C and 45mK
Temperature Measurement Range -20 to 600°C (-4 to 1112°F)
Frame Rate 60Hz
Accuracy ±2°C or 2% (at 25°C nominal, whichever is greater)
On-screen Emissivity Correction Yes
Color Palettes Standard: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted Ultra Contrast™: Ironbow Ultra, Blue-Red Ultra, High Cont
rast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
Click here for complete specifications on the Fluke TI32

What's Included with the Fluke Ti32-60Hz

  • Ti32 Thermal imager with standard infrared lens
  • AC power supply and battery pack charger (including mains adapters)
  • 2 x Lithium ion smart battery packs
  • SD memory card
  • Multi-format USB memory card reader for downloading images into your computer
  • SmartView software with free software upgrades for life
  • Rugged, hard carrying case
  • Soft transport bag
  • Adjustable hand strap
  • Printed users manual
  • Warranty registration card

Fluke SmartView® software is included with all Fluke Thermal Imagers. This powerful software provides a suite of tools that views, optimizes, annotates, and analyzes IR images. It also generates fully customizable and professional-looking reports with the push of a button or in a few easy steps. The Fluke SmartView software is not only easy to use for customers with basic needs, but it also delivers the performance that advanced users require for detailed analysis and reporting.

Fluke SmartView enhances your thermal images:

Image viewing and optimization

  • Displays an array of open images for convenient viewing and analysis
  • Displays the temperature at any given point
  • Optimize images by adjusting level & span, image parameters, add markers, and more!

Extensive annotation possibilities

  • Add annotations to images in the camera or in the PC software
  • Input information such as locations, problem description, recommended actions, and other notes
  • Reference images can be linked together for good/bad and before/after analysis
  • Annotations can be automatically included in reports
  • Review voice annotations captured in the field by the imager

Detailed analysis and total image control

  • A complete set of marker tools are provided (Hot and Cold points, user defined markers, etc.)
  • Use 3D-IR™ to view images from different perspectives, identify additional problems, and eliminate false positives the ultimate analysis tool for your digital infrared thermal imaging needs
  • IR-Fusion®: Five viewing modes enable image optimization based on application needs

Simplified report generation

  • Generate professional customized reports fast
  • One-click report generation for a quick result
  • Choice of features including before/after, IR plus visible light, annotations, supporting data and graphics
  • Report wizard guides the user through advanced report generation

System requirements

  • Windows ® XP SP2/Vista/7
  • A web browser for product registration and web updates. Internet Explorer 5.0 or newer
  • 512 MB of RAM minimum (1 GB for Vista or 7)
  • 360 MB of hard disk space for product installation
  • 16-bit color, 1024 x 768 resolution video or better
  • Color printer for printing the images
  • CD-ROM drive (for installing SmartView software)
