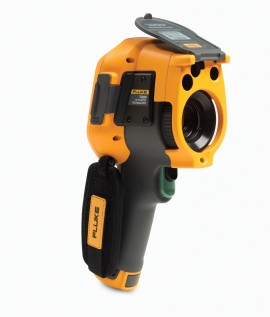

Fluke TI300-PRO-60HZ Thermal Imaging Camera, 240 x 180

Model: TI300-PRO-60HZ

Get clear, accurate focus with laser speed on your designated target with the LaserSharp™ Auto Focus. Use a built-in laser distance meter to calculate and display the distance to your designated target on the camera screen with the touch of a button.

This product has been discontinued. Click here for the replacement model(s).

Fluke TI300-PRO-60HZ Offers

The Fluke PRO series cameras introduce a leading-edge visual infrared experience. These thermal imagers feature our smartest, most intuitive user interface and increased thermal sensitivity to capture the smallest differences. Equipped with the latest technology for on-screen clarity and lens compatibility to capture targets tiny-to-large, our best-selling cameras just got better.


  • Easier to visualize and diagnose issues with sharper on-screen images, multiple rectangle markers and 9 color palettes
  • More intuitive visual interface, improved, user-tested, touch screen interface
  • More flexibility to visualize targets–tiny to large with interchangeable smart lenses—no calibration required, 2x and 4x telephoto, wide angle and macro lenses
  • Get an instant in-focus image of your designated target with LaserSharp® Auto Focus
  • Reduce the need to take notes in the field with IR-PhotoNotes™ and voice annotations
  • Highlight areas that are outside your pre-set 'normal' temperature ranges quickly with color alarms
  • Save time by wirelessly syncing images directly from your camera to the Fluke Connect® system, and attaching them to an asset record or work order

Fluke TI300-PRO-60HZ Specifications

Infrared Resolution 240 x 180 (43,200 Pixels)
IFOV with Standard Lens (Spatial Resolution) 1.75 mRad, D:S 565:1
Field of View 24° x 17°
Minimum Focus Distance 15 cm (6")
Thermal Sensitivity (NETD) ≤0.04°C @ 30°C Target Temperature (40 mK)
Frame Rate 60 Hz or 9 Hz Versions
Battery Life 3 to 4 hours per battery (actual life varies depending on settings and usage)
Temperature Measurement Range (Not Calibrated Below -10°C) -20 to 650°C (-4 to 1202°F)
Operating Temperature -10 to 50°C (14 to 122°F)
Storage Temperature -20 to 50°C (-4 to 122°F) Without Batteries
Dimensions 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5")
Weight (Battery Included) 1.04 kg (2.3 lb)
Click here for complete specifications on the Fluke TI300-PRO-60HZ

What's included with the Fluke TI300-PRO-60HZ

  • Infrared Camera with Standard Infrared Lens
  • AC Power Supply and Battery Pack Charger (Including Universal AC Adapters)
  • 2 x Rugged Lithium Ion Smart Battery Packs
  • USB Cable
  • HDMI Video Cable
  • 4 GB Micro SD Card
  • Rugged, Hard Carrying Case
  • Soft Transport Bag
  • Adjustable Hand Strap
