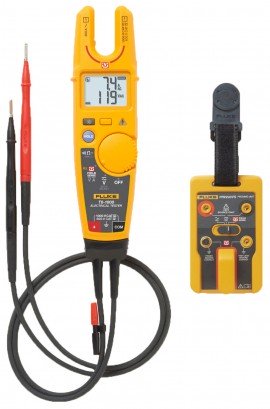

Fluke T6-1000 Electrical Tester and Proving Unit Kit, 1000 V AC

Model: T6-1000/PRV240FS

Ideal for commercial and light industrial electricians, this kit measures voltage up to 1000 V AC. Additionally, it comes equipped with an electrical tester and a proving unit kit which is built to prove the functionality of the FieldSense and provides ac and dc voltages for other HiZ instruments.

Add In-House Traceable Calibration to your Fluke T6-1000


Add In-House Traceable Calibration to your Fluke PRV240FS


$404.99 USD

was $449.99

Availability:
8 in Stock
Need a quote?




Fluke T6-1000 Offers

Measure voltage … without test leads

Measure voltage up to 1000 V ac due to FieldSense technology, which easily and quickly takes measurements by sliding a conductor through the open fork. Additionally, without opening covers or removing wire nuts, on wires up to AWG 4/0 (120 mm2), carrying as much as 200 A which makes the jobs safer, faster and easier.

Features

  • FieldSense technology for ac voltage, current and frequency measurement without making electrical contact to live voltage
  • Simultaneous voltage and current display shows all power supply measurements at a glance for efficient troubleshooting
  • 1 to 1000 V ac or dc
  • 0.1 to 200 A ac
  • Resistance 1 Ω to 100 kΩ
  • Frequency measurement 45 to 66 Hz
  • Works with wires up to AWG 4/0 (120 mm2) with a 0.7" (17.8 mm) jaw opening
  • Hold button temporarily freezes the reading for easy viewing
  • Easy to read display with backlight

Why use this electrical tester?

Electricians often work in boxes jammed with wires, where finding a safe metallic contact point can be a challenge. With this tester they can take measurements by sliding a single wire into the open fork.

How FieldSense works

FieldSense technology is truly a breakthrough in how voltage is measured. While other open fork testers detect a magnetic field to show ac current, FieldSense technology detects an electrical field. This field interacts with a reference signal created by the tester, creating a voltage value on the tester's display.

Tips: FieldSense technology

Do not hold or touch wire you are testing during a measurement. Use the black probe to make the ground connection if:

  • Wearing gloves or insulated footwear
  • Standing on an insulated ladder
  • Additional ground contact is required for the application

FieldSense measurement looks like this when probably grounded:

  • Display color turns green
  • Display shows a valid measurement >16 V rather than dashes or 0.0
  • Shows for measurement ≥30 V

Applications

  • Commercial and light industry

Fluke PRV240FS Proving Unit

Reduces the need for personal protective equipment (PPE) when a known voltage source is not available for verification (PPE is still needed for absence of voltage testing when appropriate).

Features

  • Sources both ac and dc steady-state voltage - supplies 240 V dc/ac
  • A single LED indicates functionality, making this unit a simple-to-use solution for verification of your test tool
  • Compatible with both high impedance or low impedance multimeters, clamp meters or two pole testers
  • Voltage is sourced through recessed contacts that are activated when tested probes are inserted to avoid accidental contact
  • Long battery life - 5000 tests per set of four AA batteries

Fluke T6-1000/PRV240FS Specifications

FieldSense AC Voltage True RMS
Requires Test Leads No
Range 1000 V
Resolution 1 V
Accuracy ±(3% + 3 counts) 45 to 66 Hz
FieldSense AC Current True RMS
Requires Test Leads No
Range 200.0 A
Resolution 0.1 A
Accuracy ±(3% + 3 counts) 45 to 66 Hz
FieldSense Frequency (Hz)
Requires Test Leads No
Range 45 to 66 Hz
Resolution 1 Hz
Accuracy ±(1% + 2 counts)
Volts AC True RMS
Requires Test Leads Yes
Range 1000 V
Resolution 1 V
Accuracy ±(1.5% + 2 counts) 45 to 66 Hz
Volts DC
Requires Test Leads Yes
Range 1000 V
Resolution 1 V
Accuracy ±(1% + 2 counts)
Resistance
Requires Test Leads Yes
Range 1000 V
2000 Ω
20 kΩ
100 kΩ
Resolution 1 V
1 Ω
0.01 kΩ
0.1 kΩ
Accuracy ±(1% + 2 counts)
Safety
Range 1000 V CAT III
600 V CAT IV
General Specifications
Calibration One year calibration cycle
Jaw Opening 0.7" (17.8 mm)
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -22 to 140°F (-30 to 60°C)
Operating Altitude 6562' (2000 m)
Storage Altitude 32,808' (10,000 m)
Relative Humidity 0 to 90%, 41 to 86°F (5 to 30°C)
0 to 75%, 86 to 104°F (30 to 40°C)
0 to 45%, 104 to 122°F (40 to 50°C)
Battery Type and Life 2 x AA (IEC LR6)
360 hours continuous
Typical; 200 hours using FieldSense
Temperature Coefficient 0.1 x (specified accuracy) /°C for <18 or >28°C
Safety IEC/EN 61010-1: Pollution degree 2
Electromagnetic Environment IEC/EN 61326-1: Portable
Dimensions 2.4 x 10.2 x 1.7" (61.1 x 259.3 x 43.8 mm)
Weight 0.78 lb (350 g)
Click here for complete specifications on the Fluke T6-1000/PRV240FS

What's included with the Fluke T6-1000/PRV240FS

  • Electrical Tester
  • Attached Test Leads, with 0.16" (4 mm) Removable Probe Caps
  • User's Manual

Fluke T6-1000 Electrical Tester, FieldSense Technology, 1000V AC

So much more than just a voltage detector, these testers give you a reliable voltage and current measurement, without test leads, and without contacting a bare, metal conductor.


Fluke PRV240FS Proving Unit

Provides a safe method to verify that your electrical test tool is operating properly before you conduct any live tests.

Introducing the Fluke T6 Electrical Tester


This video gives a brief introduction to the main features on the Fluke T6 like the fact that you can measure voltage and current levels at the same time! Without test leads!
