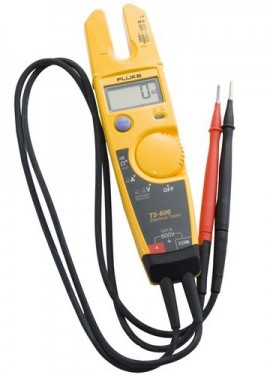

Fluke T5-600 Voltage, Continuity and Current Tester with OpenJaw™

Model: T5-600

Comes in a compact design ideal for troubleshooting environments of up to 600 V, this electrical tester allows users to check voltage, continuity, and current. Additionally, this tool comes equipped with OpenJaw measurement, which enables the user to check current up to 100 A without breaking the circuit.

Add In-House Traceable Calibration to your T5-600


$116.99 USD

was $129.99

Availability:
201 in Stock
Need a quote?





Fluke T5-600 Offers

Electrical tester with OpenJawTM Current

The Fluke T5-600 Electrical Tester lets you check voltage, continuity and current with one compact tool. With the T5-600, all you have to do is select volts, ohms, or current and the tester does the rest.

The OpenJaw current lets you check current up to 100A - without breaking the circuit. Its tough test leads stow neatly in the back of the tester, making it easy to tote the T5-600 in your tool pouch. Detachable SlimReach test probes are customized for national electrical standards. The test leads accept optional accessories such as clips and specialty probes. The optional H5 holster lets you clip the T5 onto your belt.

Also available in 1000V - see the Fluke T5-1000 Voltage, Continuity and Current Tester

Fluke T5-600 Specifications

General Specifications
Jaw Opening 0.5" (12.9 mm)
Max Wire Size 1/0 THHN Cable
Current Range AC RMS 0 to 100.0 A
Accuracy AC Current (50/60 Hz) 3% ± 3 counts
AC Response Averaging
Voltage Range AC 0 to 600 V
Accuracy AC Voltage 1.5% ± 2 counts
Voltage Range DC 0 to 600 V
Accuracy DC Voltage 1% ± 1 count
Resistance Range 0 to 1000 Ω
Continuity Beeper Threshold On at <25 Ω, off at >400 Ω
Volts Indicator LED Threshold Guaranteed on by 30 V AC
Environmental Specifications
Operating Temperature 50 to 122°F (10 to 50°C)
Storage Temperature -22 to 140°F (-30 to 60°C)
Humidity (Without Condensation) 0 to 95% at 41 to 86°F (5 to 30°C)
0 to 75% at 86 to 104°F (30 to 40°C)
0 to 45% at 104 to 122°F (40 to 50°C)
Dust/Water Resistance Yes
Operating Altitude 6561.7' (2000 m)
Temperature Coefficient 0.1 x (specified accuracy)/°C (<18°C or >28°C)
Safety Specifications
Overvoltage Category CAT III 600 V ac/dc (EN61010-1)
Agency Approvals CSA, TUV and CE
Maximum Voltage Between any terminal and earth ground
Mechanical Specifications
Calibration Cycle One-year
Current Sensor Opening 0.5" (12.9 mm)
Low Battery Indicator Yes
Battery Type 2 x AA batteries
Battery Life 200 hour zinc chloride, 400 hour alkaline
Dimensions 1.2 x 2 x 8" (30.5 x 51 x 203 mm)
Weight 0.66 lb (300 g)
Click here for complete specifications on the Fluke T5-600

What's included with the Fluke T5-600

  • Voltage, Continuity and Current Tester
  • 4 mm Detachable Probes
  • Instruction Sheet

How To Check Voltage, Continuity and Currents with the Fluke T5


This video is a tutorial on how to use your electrical tester to measure voltage, continuity, and currents. It enhances productivity with its easy to use compact design and an ideal tool to carry to every job site.

Accessories

Click on a category to view a selection of compatible accessories with the Fluke T5-600 Voltage, Continuity and Current Tester with OpenJaw™.

Fluke C150 Carrying Case for the T5-1000 and T5-600 C150
For use specifically with the T5-1000 and T5-600 continuity and current testers. Additionally, this carrying case features a high-quality polyester exterior, belt loop, and an inner pocket, which allows users to store small accessories or test leads.
$44.99 USD

Learn More

Fluke C101 Hard Carrying Case C101
Compatible with a vareity of Fluke industrial test tools. Additionally, this hard carrying case features a foam interior.
$79.99 USD

Learn More

Fluke H5 Electrical Tester Holster H5
Compatible with the Fluke T3 and T5 testers. Additionally, this electrical tester holster features a rugged fabric holster, flap for lead storage, and built-in belt loop.
$38.99 USD

Learn More

Fluke C520A Leather Tester Carrying Case C520A
Designed to hold the T5-1000 and T5-600 Voltage, Continuity and Current Testers, this leather tester carrying case features rugged construction with heavy-duty stitching and reinforced rivets.
$64.99 USD

Learn More

Fluke C33 Soft Meter Carrying Case C33
Zippered carrying case with durable polyester exterior
$39.99 USD

Learn More

Fluke TP4 Slim Reach Test Probe Set TP4
Features hard stainless steel probe tips, this slim reach test probes set is designed to fit securely into IEC electrical wall outlets.
$21.99 USD

Learn More

Fluke TP1 Slim Reach Test Probe Set TP1
Features hard stainless steel probe tips and one pair of slender probe bodies, which is ideal for probing closely spaced or recessed terminals. Additionally, it comes in a flat blade design to hold securely in blade type electrical wall sockets.
$21.99 USD

Learn More

Fluke TLK291 Fused Test Probe Set TLK291
Compatible with a variety of Fluke multimeters and test leads, this fused test probe set provides firm and secure contact.
$99.99 USD

Learn More

Fluke TP2 Slim Reach Test Probe Set TP2
Ideal for probing closely spaced or recessed terminals, this slim reach test probe set also features hard stainless steel probe tips.
$21.99 USD

Learn More

Fluke T5 Tester Starter Kit T5-KIT
Special value starter kit for the Fluke T5 Electrical Tester. Includes sharp test probes and alligator clips in a soft carry case.
$64.99 USD

Learn More


Fluke AC285 SureGrip™ Alligator Clips AC285
Designed to improve steadiness in slippery hands, and is for use with TL222 and TL224 test leads. Rubber over-molded surfaces and finger-hugging curves give a comfortable, reliable grip so you can focus on making an accurate measurement.
$28.99 USD

Learn More

Fluke AC220 SureGrip™ Alligator Clips AC220
Designed to improve steadiness with rubber overmolded surfaces and finger-hugging curves. For use with TL222 and TL224 test leads.
$49.99 USD

Learn More
