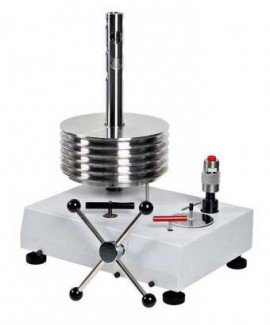

This hydraulic deadweight tester is designed for calibrating most high-pressure-sending devices, such as transducers, transmitters, gauges, pressure switches and other calibrators.
This hydraulic tester has mass set that can be trimmed to local gravity FOC.
|Pressure Ranges||500 to 30,000psi, or 40 to 2,000bar, or 4 to 200mPa, or 40 to 2,000kgf/cm2|
|Standard Weight Material||Series 3 non-magnetic, austenitic, stainless steel|
|Piston Material||Tungsten carbide with nickel binder|
|Cylinder Material||Tungsten carbide with cobalt binder|
|Thermal Coefficient of Expansion||11ppm/°C|
|Test Port Adapters||9/16 - 18 UNF (Autoclave); 3/8 BSP; 1/2 BSP and 3/4 BSP|
|Reservoir Volume||235cc (14.3in3)|
|Intensifier Ratio||7 to 1|
|Operating Fluid||Dioctyl Sebacate (DOS), our reference 55-600|
