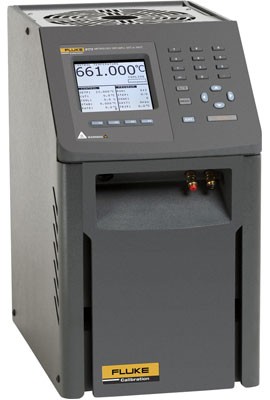

Featuring an 8in (203mm) immersion depth, plus a range from 50 to 700°C, this field metrology well delivers stable, uniform performance, working to help eliminate uncertainty budgets when calibrating thermometers at high temperatures. The metrology well comes with a C insert and built-in reference for added capability.
Accurate enough for lab use, and rugged and portable enough to take anywhere.
|Range (at 23°C Ambient)||122 to 1,292°F (50 to 700°C) (calibrated to 660°C; reference thermometer recommended at higher temperatures)|
|Display Accuracy||±0.2°C: 50 to 425°C
±0.25°C: 425 to 660°C
|Stability||±0.005°C: 50 to 100°C
±0.01°C: 100 to 425°C
±0.03°C: 425 to 700°C
|Well Depth||8in (203mm)|
|Display||LCD, °C or °F (user-selectable)|
|Size (H x W x D)||14.4 x 8 x 12.7in (366 x 203 x 323mm)|
|Power||115VAC (±10%), or 230 VAC (±10%), 50/60Hz, 1,025W|
|Traceable Calibration||Data at 100°C, 200°C, 350°C, 500°C and 660°C|
Click on a category to view a selection of compatible accessories with the Fluke 9173-C-R-156 Metrology Well with C Insert (Model 9173-INSC) and Built-In Reference, 50 to 700°C.
