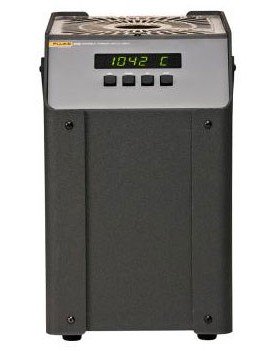

Equipped with a microprocessor-based controller, this thermocouple furnace delivers excellent set-point accuracy, plus it comes with a removable 3150-3 well insert for added flexibility. The RS-232 port makes it easy to connect the furnace to a compatible computer.
Comes with an RS-232 port for connection to a PC and is factory-calibrated and comes with test data and a calibration traceable to NIST.
|Temperature Range||302 to 2,192°F (150 to 1,200°C)|
|Display Resolution||0.1 to 999.9°; 1° above 1,000°|
|Well Diameter||1.25in (32mm)|
|Well Depth||5.5in (140mm); 4in (101mm) removable insert, plus 1.5in (38mm) insulator|
|Power||115VAC (±10%), 10.5A or 230VAC (±10%), 5.2A, switchable, 50/60Hz, 1,200W|
|Size (HxWxD)||12.4 x 8.2 x 12.4in (315 x 208 x 315mm)|
|NIST-Traceable Calibration||Data at 150°C, 300°C, 450°C, 600°C, 800°C, 1,000°C and 1,200°C|
