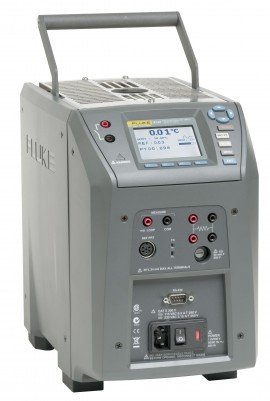

A lightweight and easy to use field metrology well that is ideal for performing transmitter loop calibrations, comparison calibrations, or simple checks of thermocouple sensors. This unit is designed for industrial process environments and fast speed temperature. Also, it features a range of 122 to 1220°F (50 to 660°C).
Built-in features to address large workloads and common applications
Whether you need to calibrate 4-20 mA transmitters or a simple thermostatic switch, a Field Metrology Well is the right tool for the job. With three models covering the range of -13 to 1220°F (–25 to 660°C), this metrology well calibrates a wide range of sensor types. The optional process version provides a built-in two-channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20 mA transmitters which includes the 24 V loop supply to power the transmitter.
Each process version accepts an ITS-90 reference PRT. The built-in readout accuracy ranges from ±0.01 °C to ±0.07 °C depending on the measured temperature. Reference PRTs for Field Metrology Wells contain individual calibration constants that reside in a memory chip located inside the sensor housing, so sensors may be used interchangeably. The second channel is user-selectable for 2-, 3-, or 4-wire RTDs, thermocouples, or 4-20 mA transmitters. For comparison calibration, don't hassle with carrying multiple instruments to the field. Field Metrology Wells do it all as a single instrument.
Traditionally, calibrations of temperature transmitters have been performed on the measurement electronics, while the sensor remained uncalibrated. Studies have shown, however, that typically 75% of the error in the transmitter system (transmitter electronics and temperature sensor) is in the sensing element. Thus, it becomes important to calibrate the whole loop—both electronics and sensor.
The process option makes transmitter loop calibrations easy. The transmitter sensor is placed in the well with the reference PRT and the transmitter electronics are connected to the front panel of the instrument. With 24 V loop power, you are able to power and measure the transmitter current while sourcing and measuring temperature in the Field Metrology Well. This allows for the measurement of as-found and as-left data in one self-contained calibration tool.
Allows for two types of automated thermostatic switch test procedures—auto or manual setup. Auto setup requires the entry of only the nominal switch temperature. With this entry, it will run a 3-cycle calibration procedure and provide final results for the dead band temperature via the display. If you need to customize the ramp rate or run additional cycles, the manual setup allows you to program and run the procedure exactly how you would like. Both methods are fast and easy.
Metrology performance for high-accuracy measurements
Unlike traditional dry-wells, field metrology wells maximize speed and portability without compromising the six key metrology performance criteria laid out by the EA: accuracy, stability, axial (vertical) uniformity, radial (well-to-well) uniformity, loading, and hysteresis. All criteria are important in ensuring accurate measurements in all calibration applications. Field Metrology Well displays are calibrated with highquality traceable and accredited PRTs. Each device (process and non-process versions) comes with an IEC-17025 NVLAP-accredited calibration certificate, which is backed by a robust uncertainty analysis that considers temperature gradients, loading effects, and hysteresis. The 9142 and 9143 have a display accuracy of ±0.2 °C over their full range, and the 9144 display accuracy ranges from ±0.35°C at 788°F (420°C) to ±0.5°C at ±1220°F (±660°C). Each calibration is backed with a 4:1 test uncertainty ratio.
New control technology guarantees excellent performance in extreme environmental conditions. It is stable to ±0.05°C. But this is not all! Thermal block characteristics provide radial (well-towell) uniformity performance to ±0.01°C. Dual-zone control helps these tools achieve axial uniformity to ±0.05°C at 1.6" (40 mm).
Automation and documentation make each unit a turnkey solution
The process versions of field metrology wells have onboard non-volatile memory for documentation of up to 20 tests. Each test can be given a unique alphanumeric ID and will record block temperature, reference temperature, UUT values, error, date, and time. Each test can be easily viewed via the front panel or exported using Model 9930 Interface-it software, which is included with each shipment. Interface it allows you to pull the raw data into a calibration report or an ASCII file. Each test can be easily viewed via the front panel. Use the 1586A Super-DAQ to automate temperature sensor calibration with these wells.
Operation is as easy as 1-2-3
You'll find field metrology wells intuitive and easy to use. Each unit is equipped with a large, easy-to-read LCD display, function keys, and menu navigation buttons. Its “SET PT.” button makes it straightforward and simple to set the block temperature. Each product has a stability indicator that visually and audibly tells you the well is stable to the selectable criteria. Each unit offers preprogrammed calibration routines stored in memory for easy recall, and all inputs are easily accessible via the front panel of the instrument. Never buy a temperature calibration tool from a company that only dabbles in metrology (or doesn't even know the word). Designed and manufactured by the same people who equip the calibration laboratories of the world's leading temperature scientists. These are the people around the world who decide what a Kelvin is! We know a thing or two more about temperature calibration than the vast majority of the world's dry-well suppliers. Yes, they can connect a piece of metal to a heater and a control sensor. But we invite you to compare all our specs against the few that they publish.
Small dry wells for big field applications
Packed with functionality and are remarkably easy to use. They are lightweight, small, and quick to reach temperature set points, yet they are stable, uniform, and accurate. These industrial temperature loop calibrators are ideal for performing transmitter loop calibrations, comparison calibrations, or simple checks of thermocouple sensors. With the “process” option, there is no need to carry additional tools into the field. This optional built-in two-channel readout reads resistance, voltage, and 4–20 mA current with 24 volt loop power. It also has on-board automation and documentation.
High performance for the industrial environment
Designed for the industrial process environment and fast speed to temperature. They weigh less than 18 lbs (8.2 kg) and have a small footprint, which makes them easy to transport.
Field environment conditions are typically unstable, having wide temperature variations. Each metrology well has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments. In fact, all specifications are guaranteed over the environmental range of 55.4 to 91.4°F (13 to 33°C).
|Base Unit Specifications|
|Temperature Range at 73.4°F (23°C)||122 to 1220°F (50 to 660°C)|
|Display Accuracy||±0.35°C at 122°F (50°C)
±0.35°C at 788°F (420°C)
±0.5°C at 1220°F (660°C)
|Stability||±0.03°C at 122°F (50°C)
±0.04°C at 788°F (420°C)
±0.05°C at 1220°F (660°C)
|Axial Uniformity at 1.6" (40 mm)||±0.05°C at 122°F (50°C)
±0.35°C at 788°F (420°C)
±0.5°C at 1220°F (660°C)
|Radial Uniformity||±0.02°C at 122°F (50°C)
±0.05°C at 788°F (420°C)
±0.10°C at 1220°F (660°C)
|Loading Effect (with a 0.25" (6.35 mm) Reference Probe and Three 0.25" (6.35 mm) Probes)||±0.015°C at 122°F (50°C)
±0.025°C at 788°F (420°C)
±0.035°C at 1220°F (660°C)
|Operating Conditions||32 to 122°F (0 to 50°C), 0% to 90% RH (non-condensing)|
|Environmental Conditions (For All Specifications Except Temperature Range)||55.4 to 91.4°F (13 to 33°C)|
|Immersion (Well) Depth||5.9" (150 mm)|
|Insert OD||0.96" (24.4 mm)|
|Heating Time||15 min: 122 to 1220°F (50 to 660°C)|
|Cooling Time||25 min: 1220 to 212°F (660 to 100°C)
35 min: 1220 to 122°F (660 to 50°C)
|Built-in Reference Thermometer Readout Accuracy (4-Wire Reference Probe)||±0.010°C at -13°F (-25°C)
±0.015°C at 32°F (0°C)
±0.020°C at 122°F (50°C)
±0.025°C at 302°F (150°C)
±0.030°C at 932°F (200°C)
±0.040°C at 662°F (350°C)
±0.050°C at 788°F (420°C)
±0.070°C at 1220°F (660°C)
|Reference Resistance Range||0 to 400 Ω|
|Reference Resistance Accuracy||0 to 42 Ω: ±0.0025 Ω
42 to 400 Ω: ±60 ppm of reading
|Reference Characterizations||ITS-90, CVD, IEC-751, Resistance|
|Reference Measurement Capability||4-wire|
|Reference Probe Connection||6-pin Din with Infocon Technology|
|Built-in RTD Thermometer Readout Accuracy||NI-120: ±0.015°C at 32°F (0°C)
PT-100 (385): ±0.02°C at 32°F (0°C)
PT-100 (3926): ±0.02°C at 32°F (0°C)
PT-100 (JIS): ±0.02°C at 32°F (0°C)
|RTD Resistance Range||0 to 400 Ω|
|RTD Resistance Accuracy||25 to 400 Ω: ±80 ppm of reading
0 to 25 Ω: ±0.002 Ω
|RTD Characterizations||PT-100 (385),(JIS),(3926), NI-120, Resistance|
|RTD Measurement Capability||4-wire RTD (2-,3-wire RTD with Jumpers only)|
|RTD Connection||4 terminal input|
|Built-In TC Thermometer Readout Accuracy||Type J: ±0.7°C at 1220°F (660°C)
Type K: ±0.8°C at 1220°F (660°C)
Type T: ±0.8°C at 752°F (400°C)
Type E: ±0.7°C at 1220°F (660°C)
Type R: ±1.4°C at 1220°F (660°C)
Type S: ±1.5°C at 1220°F (660°C)
Type M: ±1.4°C at 1220°F (660°C)
Type L: ±0.7°C at 1220°F (660°C)
Type U: ±0.75°C at 1112°F (600°C)
Type N: ±0.9°C at 1220°F (660°C)
Type C: ±1.1°C at 1220°F (660°C)
|TC Millivolt Range||–10 to 75 mV|
|Voltage Accuracy||0.025% of reading + 0.01 mV|
|Internal Cold Junction Compensation Accuracy||±0.35°C ambient of 55.4 to 91.4°F (13 to 33°C)|
|TC Connection||Small connectors|
|Built-In mA Readout Accuracy||0.02% of reading + 2 mV|
|mA Range||Cal 4-22 mA, Spec 4-24 mA|
|mA Connection||2 terminal input|
|Loop Power Function||24 V DC loop power|
|Built-In Electronics Temperature Coefficient (0 to 13°C, 33 to 50°C)||±0.005% of range per °C|
|Display||LCD, °C or °F user-selectable|
|Power Requirements||100 to 115 V (±10%), 50/60 Hz, 1400 W 230 V (±10%), 50/60 Hz, 1800 W|
|Computer Interface||RS-232 interface|
|Calibration||NVLAP accredited calibration included|
|Automation||Use the 1586A Super-DAQ to automate temperature sensor calibration|
|Dimensions||11.4 x 7.3 x 11.6" (290 x 185 x 295 mm)|
|Weight||17 lbs (7.7 kg)|
