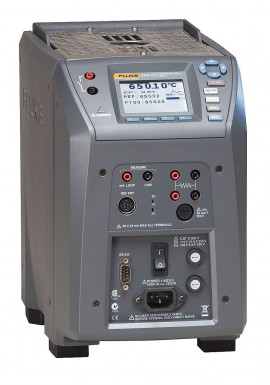

Fluke 9144-A-156 Field Metrology Well with insert A, 122 to 1220°F

Model: 9144-A-156

A lightweight and easy to use field metrology well that is ideal for performing transmitter loop calibrations, comparison calibrations, or simple checks of thermocouple sensors. This unit is designed for industrial process environments and fast speed temperature. Also, it features 0.25" (6.35 mm).

Traceable Calibration Certificate for your 9144-A-156 Field Metrology Well with insert A

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIDW1) for only $300.00 USD

2 to 3 Weeks

$7,817.25 USD

Fluke 9144-A-156 Offers

The Fluke 9144-A-156 is a portable field metrology well for temperature calibration from 50 to 660°C (122 to 1220°F). It supplies a stable heat source for use in industrial environments or the laboratory and includes the 9144-INSA insert A with assorted imperial holes.

Use the well as a temperature source for comparison calibrations, thermocouple checks, and temperature-transmitter sensor calibration. Reference thermometers and electrical readout instruments are used separately as required by the calibration procedure.

This is the standard, non-process model. The built-in two-channel thermometer readout, 4–20 mA measurement, 24 V loop supply, and onboard storage of up to 20 test records are features of the separate -P process versions, not the 9144-A-156.

Features

Temperature range: 50 to 660°C (122 to 1220°F) at 23°C ambient.
Heats from 50 to 660°C in 15 minutes.
Cools from 660 to 100°C in 25 minutes or from 660 to 50°C in 35 minutes.
Display accuracy: ±0.35°C at 50°C and 420°C; ±0.5°C at 660°C.
Temperature stability: ±0.03°C at 50°C and ±0.05°C at 660°C.
Large LCD with user-selectable °C or °F display and 0.01° resolution.
Dedicated SET PT. button and menu keys simplify temperature setup.
Visual and audible stability indication and preprogrammed calibration routines.
Automatic or manually configured thermostatic switch test procedures.
150 mm (5.9 in) well depth and insert A with assorted imperial holes.
Portable 7.7 kg (17 lb) design with RS-232 communication.

Applications

Comparison calibration of temperature sensors using a separate reference thermometer.
Thermocouple calibration and verification using a separate readout as required.
Temperature-transmitter loop calibration using separate measurement and loop-power instruments as required.

Fluke 9144-A-156 Specifications

Base Unit Specifications
Temperature Range at 73.4°F (23°C)	122 to 1220°F (50 to 660°C)
Display Accuracy	±0.35°C at 50°C ±0.35°C at 420°C ±0.5°C at 660°C
Stability	±0.03°C at 50°C ±0.04°C at 420°C ±0.05°C at 660°C
Axial Uniformity at 1.6" (40 mm)	±0.05°C 50°C ±0.35°C at 420°C ±0.5°C at 660°C
Radial Uniformity	±0.02°C at 50°C ±0.05°C at 420°C ±0.10°C at 660°C
Loading Effect (with a 0.25" (6.35 mm) Reference Probe and Three 0.25" (6.35 mm) Probes)	±0.015°C at 50°C ±0.025°C at 420°C ±0.035°C at 660°C
Hysteresis	0.1
Operating Conditions	32 to 122°F (0 to 50°C), 0% to 90% RH (non-condensing)
Environmental Conditions (For All Specifications Except Temperature Range)	55.4 to 91.4°F (13 to 33°C)
Immersion (Well) Depth	5.9" (150 mm)
Insert OD	0.96" (24.4 mm)
Heating Time	15 min: 122 to 1220°F (50 to 660°C)
Cooling Time	25 min: 1220 to 212°F (660 to 100°C) 35 min: 1220 to 122°F (660 to 50°C)
General Specifications
Resolution	0.01°
Display	LCD, °C or °F user-selectable
Power Requirements	(±10%), 50/60 Hz, 1800 W
Computer Interface	RS-232 interface
Calibration	NVLAP accredited calibration included
Automation	Use the 1586A Super-DAQ to automate temperature sensor calibration
Dimensions	11.4 x 7.3 x 11.6" (290 x 185 x 295 mm)
Weight	17 lbs (7.7 kg)

Click here for complete specifications on the Fluke 9144-A-156

What's included with the Fluke 9144-A-156

Field Metrology Well
A Insert
Report of Calibration and Calibration Label
Software
Insert Removal Tool
Serial Cable
Power Cord
Users Manual
Technical Manual on CD
