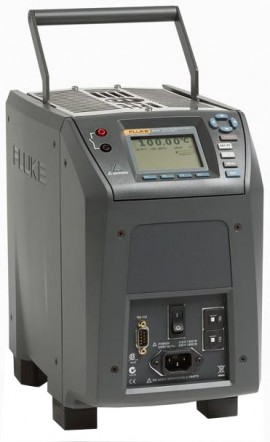

Fluke 9143-E-P-156 Field Metrology Well with E Insert (Model 9143-INSE) and Process Electronics, 91 to 662°F

Model: 9143-E-P-156

This small-sized field metrology well is perfect for big field applications, including transmitter loop calibrations, comparison calibrations and thermocouple sensor checks. The metrology well comes with an E insert and has process electronics.

Fluke 9143-E-P-156 Offers

It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.

Features

Lightweight, portable, and fast
Cool to -25°C in 15 minutes and heat to 660°C in 15 minutes
Built-in 2-channel readout for PRT, RTD, thermocouple, 4-20mA current
True reference thermometry with accuracy to ±0.01°C
On-board automation and documentation
Metrology performance in accuracy, stability, uniformity, and loading

Fluke 9143-E-P-156 Specifications

Temperature Range at 23°C	91 to 662°F (33 to 350°C)
Display Accuracy	±0.2°C (full range)
Operating Conditions	0 to 50°C, 0 to 90% RH (non-condensing)
Immersion (Well) Depth	5.9in (150mm)
Resolution	0.01°
Display	LCD, °C or °F (user-selectable)
Size (H x W x D)	11.4 x 7.3 x 11.6in (290 x 185 x 295mm)
Weight	16lbs (7.3kg)
Power Requirements	100 to 115V (±10%) 50/60Hz, 1400W; 230V (±10%), 50/60Hz, 1,800W
Computer interface	RS-232 (9930 Interface-it control software included)

Click here for complete specifications on the Fluke 9143-E-P-156

What's included with the Fluke 9143-E-P-156

User Manual
Technical Manual on CD
Serial Cable
9930, Interface-it Software
Report of Calibration
Test Leads
Insert Removal Tool
6-Pin DIN Connector for Reference Probe
