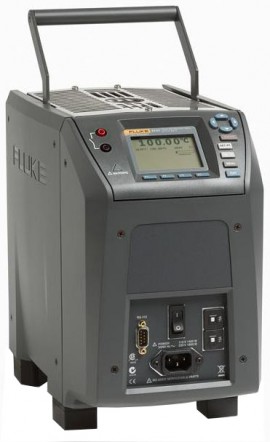

Fluke 9143-DW-P-156 Field Metrology Well (No Insert) with Process Electronics, 33 to 350°C

Model: 9143-DW-P-156

This small-sized field metrology well is perfect for big field applications, including transmitter loop calibrations, comparison calibrations and thermocouple sensor checks. The metrology well comes without an insert and has process electronics.

$6,759.00 USD

Availability:
2 to 3 Weeks
Need a quote?




Fluke 9143-DW-P-156 Offers

It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.

Features

  • Lightweight, portable, and fast
  • Cool to 25 °C in 15 minutes and heat to 660 °C in 15 minutes
  • Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current
  • True reference thermometry with accuracy to &plusm;0.01 °C
  • On-board automation and documentation
  • Metrology performance in accuracy, stability, uniformity, and loading

Fluke 9143-DW-P-156 Specifications

Temperature range at 23°C 91 to 662°F (33 to 350°C)
Display accuracy &plusm;0.2°C Full Range
Operating conditions 0°C to 50°C, 0% to 90% RH (non-condensing)
Immersion (well) Depth 5.9in (150mm)
Resolution 0.01°
Display LCD, °C or °F user-selectable
Size (H x W x D) 11.4 x 7.3 x 11.6in (290 x 185 x 295mm)
Weight 16lb (7.3kg)
Power requirements 100 V to 115 V (&plusm;10%) 50/60 Hz, 1400 W 230 V (&plusm;10%), 50/60 Hz, 1800 W
Computer interface RS-232 and 9930 Interface-it control software included

What's included with the Fluke 9143-DW-P-156

  • Power Cord
  • RS-232 Cable
  • Report of Calibration and Calibration Label
  • 6-pin DIN Connector
  • Test Lead Kit
  • Clamp-on Ferrites
  • Insert Removal Tool
  • 9930 Interface-it Software/Manual
  • Technical Manual CD
  • User Manual
