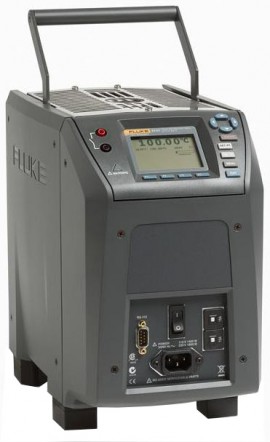

Model: 9143-DW-156
This small-sized field metrology well is perfect for big field applications, including transmitter loop calibrations, comparison calibrations and thermocouple sensor checks. The metrology well comes without an insert.
It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.
Features
| Temperature Range at 23°C | 91 to 662°F (33 to 350°C) |
| Display Accuracy | ±0.2°C (full range) |
| Operating Conditions | 0 to 50°C, 0 to 90% RH (non-condensing) |
| Immersion (Well) Depth | 5.9in (150mm) |
| Resolution | 0.01° |
| Display | LCD, °C or °F (user-selectable) |
| Size (H x W x D) | 11.4 x 7.3 x 11.6in (290 x 185 x 295mm) |
| Weight | 16lbs (7.3kg) |
| Power Requirements | 100 to 115V (±10%) 50/60Hz, 1400W; 230V (±10%), 50/60Hz, 1,800W |
| Computer interface | RS-232 (9930 Interface-it control software included) |
Click on a category to view a selection of compatible accessories with the Fluke 9143-DW-156 Field Metrology Well (No Insert), 91 to 662°F.
