Fluke 9142-A-156 Low Temp Field Metrology Well-
Downloads: datasheet manual

Ask an Expert

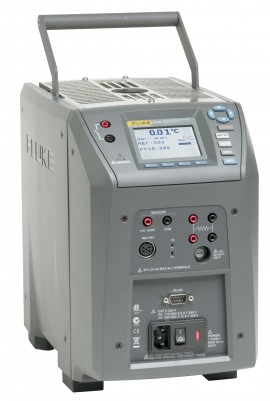

Fluke 9142-A-156 Low Temp Field Metrology Well

Model: 9142-A-156

This unit calibrates a wide range of sensor types. Manual setup allows you to program and run the procedure exactly how you would like.

Traceable Calibration Certificate for your 9142-A-156 Low Temp Field Metrology Well

2 to 3 Weeks

$8,810.00 USD



Fluke 9142-A-156 Low Temp Field Metrology Well Offers

Features

  • Auto setup requires the entry of only the nominal switch temperature, and with this entry it will run a 3-cycle calibration procedure and provide final results for the dead band temperature via the display
  • Manual setup allows you to program and run the procedure exactly how you would like
  • Each device (process and non-process versions) comes with an IEC-17025 NVLAP-accredited calibration certificate
  • Each calibration is backed with a 4:1 test uncertainty ratio
  • Display accuracy of ± 0.2°C over their full range
  • Stable to ± 0.01°C over its full range and the mid-range
  • Thermal block characteristics provide radial (well-to-well) uniformity performance to ±0.01°C
  • Dual-zone control helps these tools achieve axial uniformity to ±0.05°C at 40 mm (1.6")

Applications

Ideal for the following applications: Laboratory, Education, R&D, Calibration Labs, Field Calibration, Industrial Process

Fluke 9142-A-156 Specifications

Temperature Range -13 to 302°F (-25 to 150°C)
Accuracy ±0.2°C (full range)
Stability ±0.01°C (full range)
Radial Uniformity ±0.01°C (full range)
Axial Uniformity @ 40mm (1.6") ±0.05°C (full range)
Hysteresis 0.025
Heating Time 23 minutes
Cooling Time 15 mins to -25°C
Immersion Depth 150mm (6")
Insert O.D. 30mm (1.18")
Click here for complete specifications on the Fluke 9142-A-156

What's included with the Fluke 9142-A-156

  • Fluke 9142-A-156 Low Temp Field Metrology Well

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 9142-A-156 Low Temp Field Metrology Well.

Fluke Z Insert (Model 9142-INSZ) for 9142 Metrology Wells, Blank 9142-INSZ
Use this Z insert with your existing 9142 metrology well.
$387.13 USD

was $475.00


Learn More
Fluke T Insert (Model 9142-INST) for 9142 Metrology Wells, Test 9142-INST
Use this T insert with your existing 9142 metrology well.
$594.95 USD

was $730.00


Learn More
Fluke G Insert (Model 9142-INSG) for 9142 Metrology Wells, EA Test 9142-INSG
Use this G insert with your existing 9142 metrology well.
$627.55 USD

was $770.00


Learn More
Fluke F Insert (Model 9142-INSF) for 9142 Metrology Wells, Metric Comparison Misc Holes with 0.25in Hole 9142-INSF
Use this F insert with your existing 9142 metrology well. The insert comes equipped with metric comparison misc holes for compatibility.
$452.33 USD

was $555.00


Learn More
Fluke E Insert (Model 9142-INSE) for 9142 Metrology Wells, Metric Misc Holes with 0.25in Hole 9142-INSE
Use this E insert with your existing 9142 metrology well. The insert comes equipped with metric misc holes for compatibility.
$452.33 USD

was $555.00


Learn More
Fluke D Insert (Model 9142-INSD) for 9142 Metrology Wells, Metric Comparison Holes 9142-INSD
Use this D insert with your existing 9142 metrology well. The insert comes equipped with metric comparison holes for compatibility.
$452.33 USD

was $555.00


Learn More
Fluke C Insert (Model 9142-INSC) for 9142 Metrology Wells, 0.25in Holes 9142-INSC
Use this C insert with your existing 9142 metrology well. The insert comes equipped with 0.25in holes for compatibility.
$452.33 USD

was $555.00


Learn More
Fluke B Insert (Model 9142-INSB) for 9142 Metrology Wells, Imperial Comparison Holes 9142-INSB
Use this B insert with your existing 9142 metrology well. The insert comes equipped with imperial comparison holes for compatibility.
$452.33 USD

was $555.00


Learn More
Fluke A Insert (Model 9142-INSA) for 9142 Metrology Wells, Imperial Misc Holes 9142-INSA
Use this A insert with your existing 9142 metrology well. The insert comes equipped with imperial misc holes for compatibility.
$452.33 USD

was $555.00


Learn More
Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25
Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.
$93.72 USD

was $114.99


Learn More
Fluke 9142-CASE for Field Metrology Wells 9142-CASE
Field Metrology Well Case.
$1,200.00 USD

Learn More
