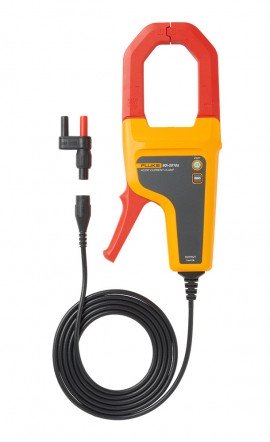

Fluke 80i-2010s AC/DC Current Clamp, 2000 A

Model: 80i-2010s

An open-jaw, clamp-on current probe with a current range of 2000 A, and an accuracy of 0.8%, that is also safety rated for CAT III 1000 V, CAT IV 600 V environments.

Add In-House Traceable Calibration to your


2 to 3 Weeks

$824.99 USD

Need a quote?




Fluke 80i-2010s Specifications

Electrical
Current Range 2000 A AC rms, ± 2000 A DC
Output Sensitivity 1 mV/A
Accuracy ±0.8% of reading ±0.2% of range
Bandwidth for Accuracy Specification DC to 400 Hz
Load Impedance >1 MΩ and <10 pF
Frequency Response (Small Signal) DC to 20 kHz (-3 dB)
Temperature Coefficient 0.1 x specified accuracy for each degree C above 28°C or below 18°C
Working Voltage 1000 V AC RMS or DC
General Specifications
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -22 to 140°F (-30 to 60°C), with battery removed
Operating Humidity ≤90% RH (at 50 to 86°F [10 to 30°C])
≤75% RH (at 86 to 104°F [30 to 40°C])
≤45% RH (at 104 to 122°F [40 to 50°C])
Altitude Operating: 6561.68' (2000 m)
Storage: 39,370.1' (12,000 m)
Demagnetize Clamp Open and close the clamp jaws several times with soft click, use of the clamp on uninsulated conductors is limited to 1000 Vac rms or DC and frequencies 1 kHz or less
Power Supply 2 x AA alkaline batteries, IEC LR6
Battery Life 150 hours (typically)
Low Battery Indicator Yes
Safety IEC 61010-1, Pollution Degree 2, IEC 61010-2-032: CAT III 1000 V /CAT IV 600 V
Ingress Protection IEC 60529, IP40
Output to Zero Auto adjustment with Zero button
Output Cable 60" (1.5 m) shielded coaxial cable with BNC plug
Maximum Conductor Size 2.05" (52 mm)
Maximum Jaw Opening 3.2" (81.5 mm)
Dimensions 4.33 x 10.63 x 1.81" (110 x 270 x 46 mm)
Weight 1.6 lbs (0.71 kg), including battery
Click here for complete specifications on the Fluke 80i-2010s

What's included with the Fluke 80i-2010s

  • Fluke 80i-2010s AC/DC Current Clamp, 2000 A
