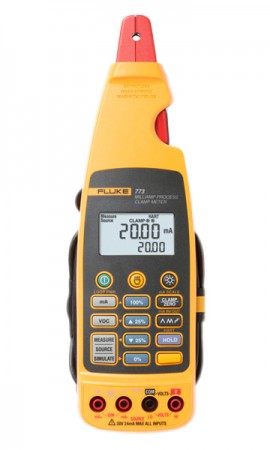

Fluke 773 Milliamp Process Clamp Meter, 4 to 20 mA

Model: 773

Ideal for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) found in process plants. This meter measures 4 to 20 mA signals without breaking the loop, which allows it to troubleshoot a live device without having to power down. Additionally, users can detach the clamp section of the meter.

to your 773


$1,369.99 USD

Availability:
2 in Stock
Need a quote?





Fluke 773 Offers

Don't break the loop on 4-20 mA signal measurements and save time.
If you need more time in your busy day check out the Fluke 77X mA Clamp Meters. Comprising the Fluke 771, Fluke 772 and Fluke 773 (this product), this innovative family of process clamp meters are designed to save process control professionals time and money by eliminating time wasting activities.
Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system using the built-in removable clamp. The Fluke 773 also sources/simulates mA process signals and provides a 24VDC loop power source! In addition the Fluke 773 process clamp meter also measures up to 30VDC and sources 1-5V/0-10V DC process signals for testing devices.
The Fluke 772 and Fluke 773 expand upon the capabilities of the popular Fluke 771 mA Clamp Meter. All models feature:
  • Best in class 0.2 % accuracy
  • 0.01 mA resolution and sensitivity
  • Measure 4 to 20 mA signals without "breaking the loop"
  • Measure mA signals for PLC and control system analog I/O
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span
  • Measurement Spotlight illuminates hard to see wires in dark enclosures
  • Detachable clamp with extension cable for measurements in tight locations
  • Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatically change the 4 to 20 mA output for remote testing
  • Power saving features, auto-off, backlight timeout extend battery life
  • Hold function captures and displays changing measurements

In addition the capabilities of the Fluke 771, the Fluke 772 and Fluke 773 also add the following capabilities:
  • Measure 4 to 20 mA process control signals with in-circuit measurement
  • Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
  • Source 4 to 20 mA signals for testing control system I/O or I/Ps
  • mA output linear ramp or 25% step output

In addition, this product - the Fluke 773 clamp meter - also adds the following features not found on other models:
  • DC voltage measurement to verify 24V power supplies or voltage I/O signals
  • Source DC voltage to test input devices that accept a 1-5V or 0 to 10V signals
  • Scaled mA output provides a continuous mA signal that corresponds to the 4 to 20 mA signal measured by the mA clamp
  • mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal
  • Voltage output linear ramp or 25% step output

Fluke 773 Specifications

Measurement mA (Measured by Clamp)
Resolution/Range 0 to 20.99 mA
Accuracy 0.2% + 5 counts
Resolution/Range 21.0 to 100.0 mA
Accuracy 1% + 5 counts
Measurement mA (Measured in Series with Test Jacks)
Resolution/Range 0 to 24.00 mA
Accuracy 0.2% + 2 counts
Source mA (Maximum mA Drive: 24 mA into 1000 Ω)
Resolution/Range 0 to 24.00 mA
Accuracy 0.2% + 2 counts
Simulate mA (Maximum Voltage 50 V DC)
Resolution/Range 0 to 24.00 mA
Accuracy 0.2% + 2 counts
Voltage Source (2 mA Maximum Drive Current)
Resolution/Range 0 to 10.00 V DC
Accuracy 0.2% + 2 counts
Voltage Measure
Resolution/Range 0 to 30.00 V DC
Accuracy 0.2% + 2 counts
General Specifications
Diameter of Measurable Conductor 0.177" (4.5 mm) max
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -13 to 140°F (-25 to 60°C)
Operating Humidity <90% at <86°F (30°C)
<75% at 86 to 131°F (30 to 55°C)
Operating Altitude 0 to 6561.7' (0 to 2000 m)
Dimensions 278 x 5¾ x 1158" (44 x 70 x 246 mm)
Weight 0.9 lb (410 g)
IP Rating IP 40
Click here for complete specifications on the Fluke 773

What's included with the Fluke 773

  • Milliamp Process Clamp Meter
  • Test Leads
  • Alligator Clips
  • Hanging Strap
  • Carrying Case
  • User Manual
