Powerful intrinsically safe, self contained pressure calibrator for usage in Explosion endangered areas. Current measurement with 0.02% accuracy and 0.001 mA resolution.

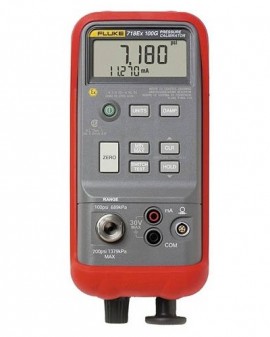

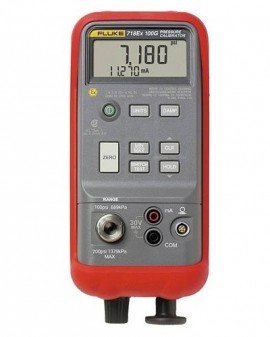

The Fluke 718 pressure calibrator family (includes 4 models) provide a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
|Range||-830 mbar to 20 bar (internal sensor) Over pressure: 375 psi, 25 bar|
|Functions||Zero, Min, Max, Hold, Damp|
|Power||One 9-volt alkaline battery|
|Battery life||4 to 20 hours, depending on functions used|
|Operating temperature||-10 to 55 °C|
|Non-operating temperature||-40 to 71 °C|
|Size (LxWxD)||216 mm x 94 mm x 66 mm (8.50 in x 3.72 in x 2.60 in)|
|Weight||35 oz (992 g)|
|Vibration||Random, 2g, 5-500 Hz|
|Shock||1 Meter Drop test|
Click on a category to view a selection of compatible accessories with the Fluke 718EX-300 Intrinsically Safe Pressure Calibrator.
