This portable calibration bath features four times more calibration throughput with twice the accuracy of Micro-Baths and dry-block calibrators.
Process manufacturing plants for pharmaceuticals,biotechnology, and food production utilize many sanitary temperature sensors that require regular calibration. Production must stop while the calibrations are taking place. Therefore, more calibration throughput means less plant downtime. And in businesses where even a few tenths of a degree Celsius can cost thousands of dollars in ruined product, temperature accuracy is crucial to maintaining quality.

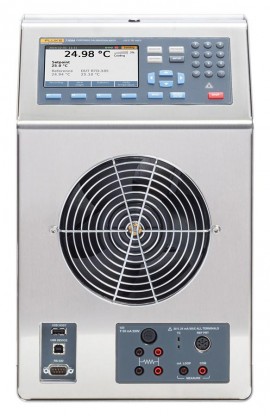

The Fluke Calibration 7109A Portable Calibration Baths let process industry professionals calibrate four times more sanitary sensors per batch in less time and with twice the accuracy of other baths in this class. Up to four tri-clamp sanitary sensors fit easily into these baths for calibration at ± 0.1°C display accuracy. Throughput is even higher for sanitary RTDs with small or no flanges.
Professionals working in clean process industries,including facilities managers, production engineers and calibration technicians, prefer these baths for a variety of reasons. Facilities managers who need to meet U.S. FDA and ISO clean room standards like the baths' stainless steel casing that stands up to harsh cleaning solutions. They depend on the 7109A to help maintain the accuracy of the plant's temperature sensors, thus reducing the possibility of an expensive product batch loss.
Production engineers also appreciate the baths' accuracy, which helps them control sensor out-oftolerance conditions. Moreover, they prefer to use a bath designed specifically for clean room calibration throughput. No more need to make do with equipment designed for some other application.
Calibration technicians who perform calibrations on platforms, in crawl spaces, and other hardto- reach parts of the plant enjoy the portability and clean room compatibility (i.e. easy to sanitize, don't harbor bacteria) of these baths.
|Size||Height: 382 mm (15 in) / Width: 242 mm (9.5 in) / Depth: 400 mm (15.7 in)|
|Fluid Volume||2.5 liters (0.66 gallons)|
|Fluid Working Area||75 mm x 75 mm (3 in x 3 in)|
|Maximum Fluid Depth||154 mm (6.1 in)|
|Factory Calibration||Traceable NVLAP-accredited calibration included|
|Temperature Range (@25°C Ambient Temperature)||–25 to 140°C (–15°C cover off)|
|Typical Heating Time||–25 to 25°C: 35 minutes / 25 to 140°C: 55 minutes|
|Typical Cooling Time||140 to 25°C: 45 minutes / 25 to –25°C: 75 minutes|
|Typical Settling Time||10 minutes|
