Model: 707EX
Large display and simple, quick-click interface for easy one-handed operation. Simultaneous mA and % readout for quick, easy interpretation of readings.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
The fastest, one-handed tool for mA loop checks in Ex zones.

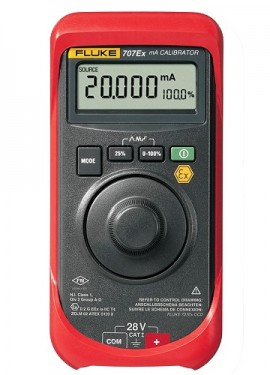

The Fluke 707Ex is an intrinsically safe loop calibrator for use in explosion endangered areas, it has all the features of the standard Fluke 707 plus an ATEX rating.
Fluke 707Ex Intrinsically Safe Loop Calibrator is a high performance solution for calibration, repair and maintenance of current loops. Use it to temporarily replace the power source in a current loop. With the calibrator in control of the current, you can accurately set the current between 4 and 20 mA. This allows you to control the loop and the devices connected to it - which means you can control and calibrate actuators and indicators in that loop
Click your way to the precise milliamp value you want with Fluke 707's "Quick Click" knob interface making it extremely fast and easy to use. Each click changes the value by 0.001 mA. Press and click to change it in increments of 0.100 mA. The large digital display shows you. The click lets you feel it.
The Fluke 707Ex is certified in accordance with the ATEX directive (Ex II 2 G Eex ia IIC T4) in Zones 1 and 2. The Fluke 707Ex is also certified to operate in accordance with Factory Mutual N.I. Class 1, Division 2 areas Group A-D.
| Current Measurement | Range: 0 to 24 mA, Resolution: 0.001 mA, Accuracy: 0.015% Rdg + 2 LSD |
| Current Sourcing | Range: 0 to 20 mA or 4 to 20 mA, Accuracy: 0.015% Rdg + 2 LSD, Drive Capability: 700 Ω at 20 mA |
| Current Simulation | Range: 0 to 20 mA or 4 to 20 mA, Accuracy: 0.015% Rdg + 2 LSD |
| Loop Power | While measuring mA, 24 V |
| Voltage measurement | Range: 0 to 28 V DC, Resolution: 1 mV, Accuracy: 0.015% Rdg + 2 LSD |
| Operating temperature | -10 to 55°C |
| Storage temperature | -40 to 60°C |
| Temperature Coefficient | -10 to 18°C, 28 to 55°C, ±.005% of range per °C |
| Safety | CSA C22.2 No. 1010.1:1992 |
| Maximum voltage | 30 V (protection circuit for 230 V) |
| Size | 152 x 70 x 41 mm |
| Weight | 224 g (350 g including holster) |
| Batteries | One 9V battery Alkaline |
Click on a category to view a selection of compatible accessories with the Fluke 707EX Intrinsically Safe Loop Calibrator.
