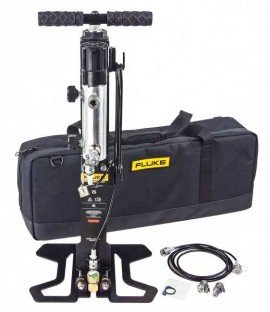

Fluke 700HPP-BSP Pneumatic Test Pump Kit, 21 mPa, BSP

Model: 700HPP-BSP

The portable and lightweight design of the pump makes it an ideal choice for calibration technicians, test engineers, and instrument technicians.

$2,874.00 USD

2 to 3 Weeks
Need a quote?

Fluke 700HPP-BSP Offers

Generates and adjusts pneumatic pressures up to 21 MPa (3000 psi), without requiring a nitrogen bottle or other external pressure supply. It supplies pressure to devices under test (DUTs) that include transmitters, controllers, pilots, digital and analog gauges, and more. It's the perfect solution for generating high pressure in the field, where conditions and operating surfaces can vary.


  • No weights to load and unload, transport or send out for calibration
  • Provides real-time pressure indication with no need to know and correct for local gravity or ambient temperature
  • No piston-cylinder changes
  • No significant sensitivity to level or vibration
  • Able to set and read any pressure value exactly, no minimum increment limited by smallest available masses; perfect for applications that require setting a nominal pressure precisely on the device under test and measuring it, such as analog gauge calibration
  • Operates in any unit of measure, switching easily from one unit to the next


  • Natural gas transmission and distribution
  • Process
  • Aerospace and defence

Fluke 700HPP-BSP Specifications

Maximum Working Pressure 21 Mpa, 3000 psi
Time to Generate Full Scale Pressure with 10cc Volume (s) 20
Reference Gauge Connection 1/4 NPT, Quick Connect
Inlet Supply Contamination Protection Desiccant Filter
Dimensions 66 x 25 x 13cm (26 x 10 x 5")
Weight 5.5 kg (12.2 lbs)
Click here for complete specifications on the Fluke 700HPP-BSP

What's included with the Fluke 700HPP-BSP

  • Pump
  • High Pressure Pneumatic Quick Service Kit (Seals for Pump)
  • Dry Pac Refill
  • Silicone Grease
  • High Pressure Hose
  • Test Port Adapters
  • Canvas Carrying Bag
