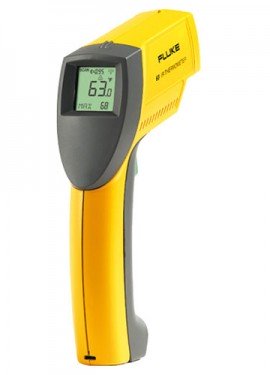

Fluke 63 Mini Infrared Thermometer Gun, 12:1 distace to spot ratio

Model: 63

Monitor the status of electrical motors and electrical panels, research heating, ventilation problems, and diagnose car malfunctions with this mini infrared thermometer gun. Also, it features a distance to spot ratio of 12:1 and enhanced optics, users can take measurements in hard-to-reach hot, rotating, or dangerous situations.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Fluke 59MAX Infrared Thermometer, -22 to 662°F

Model: 59MAX

Take precise temperature measurements with this small and lightweight infrared thermometer. This unit features a distance to spot ratio of 8:1 and precise single laser targeting. Additionally, it is capable of taking temperature measurements from -22 to 662°F (-30 to 350°C).

The replacement product is only available on our affiliate GlobalTestSupply.com website. Don't worry your cart and information will be brought over.

Go to GlobalTestSupply.com

Not what you're looking for? Let’s do a search and help you find what you need.

Fluke 63 Offers

Features

Rugged mini IR thermometer with 12:1 distance to spot ratio for non-contact temperature measurements
High-resolution optics for measuring in hard-to-reach situations
Delivers high accuracy (1%) and repeatability (0.5%)
Shows MAX temperature on backlit display
Offers laser targeting for precise measurements

Optical resolution

The single dot laser sighting system guides measurements to the right target and indicates the approximate center of the measurement area.

Features

High-resolution optics
High accuracy: 1% and repeatability: 0.5%
MAX temperature display
Laser targeting
Backlit display
Expanded measurement range up to 999°F (535°C)

Applications

Electrical motors and electrical panels
Research heating
Ventilation problems
Diagnose car malfunctions

Fluke 63 Specifications

Temperature Range	-25 to 999°F (-32 to 535°C)
Accuracy (Assumes Ambient Operating Temperature of 73°F (23°C))	-25 to -15°F (-32 to -26°C): ±5°F (±3°C ) -15 to 0°F (-26 to -18°C): ±4°F (±2.5°C) 0 to 73°F (-18 to 23°C ): ±3°F (±2°C) 73 to 950°F (23 to 510°C): ±1% of reading or ±2°F (±1°C), whichever is greater Above 950°F (510°C): ±1.5% of reading
Repeatability	±0.5% or ≤±2 °F (±1°C), whichever is greater
Response Time	≤0.5 second (95% of reading)
Spectral Response	8 to 14 µm
Emissivity	Pre-set at 0.95
Ambient Operating Temperature	32 to 120°F (0 to 50°C)
Relative Humidity	10 to 90%
Storage Temperature	-13 to 158°F (-20 to 60°C) without battery
Power	9 V alkaline or NiCd battery
Batter Life (Alkaline)	10 hours with laser and backlight on 40 hours with laser and backlight off
Typical Distance to Target	Up to 6' (2 m)
Distance to Spot Ratio	12:1
Temperature Display	°C or °F selectable
Display Resolution	0.5°F (0.2°C)
Dimensions	8 x 6 x 2" (200 x 160 x 55 mm)
Weight	0.7 lb (320 g)

Click here for complete specifications on the Fluke 63

What's included with the Fluke 63

Infrared Thermometer
Wrist Strap
Carrying Case
Manual
Two-Years Conditional Warranty

Fluke Infrared Thermometers: What is Distance-to-Spot Ratio?

This explanatory video will go over how does distance-to-spot ratio affects the ability of an infrared thermometer to measure the temperature of a surface from a distance. Also, these devices are equipped with laser pointers.
