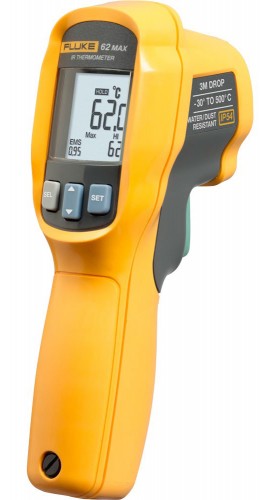

Fluke 62 MAX Infrared Thermometer

Model: 62 MAX | Order No: 62MAX

Perform non-contact temperature measurements on transformers, motors, pumps, panels, breakers, compressors, ducts, steam lines, valves, and vents with this infrared thermometer. It features a single laser with a distance to spot ratio of 10:1. Additionally, it's rugged design withstands a 9.8' (3 m) drop.

to your Fluke 62 Max Mini,


7 to 8 Weeks

$114.99 USD

Need a quote?




Fluke 62 MAX Offers

Features

  • Provides a 10:1 Distance to spot ratio
  • Offers single laser targeting for accurate and repeatable measurements
  • IP54 rating against dust and moisture
  • High and low alarms for rapid detection of temperatures outside the limits
  • Powered by a single, standard AA battery
  • Withstands a 9.8' (3 m) drop
  • Small, lightweight form factor to clip comfortably to your tool belt or belt loop, or easily fit in your tool box
  • A large, backlit display to make data easier to read, even in dark areas
  • Displays Min/Max/Avg/Dif: the minimum, maximum or average temperature, or the difference between two measurements

Applications

  • Non-contact temperature

Fluke 62 MAX Specifications

Temperature Range -22 to 932°F (-30 to 500°C)
Accuracy ±34.7°F (±1.5°C) or ±1.5% of reading, whichever is greater
14 to 32°F (-10 to 0°C): ±2.0
-22 to 14°F (-30 to -10°C): ±3.0
Response Time (95%) <500 ms (95% of reading)
Spectral Response 8 to 14 microns
Emissivity 0.10 to 1.00
Optical Resolution 10:1 (calculated at 90% energy)
Display Resolution 0.2°F (0.1°C)
Repeatability of Readings ±0.8% of reading or <±2°F (1.0°C), whichever is greater
Power AA Battery
Battery Life 10 hours with laser and backlight on
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C), without battery
Operating Humidity 10% to 90% RH non-condensing at 86°F (30°C)
Operating Altitude 6561.7' (2000 m) above mean sea level
Storage Altitude 39,370.08' (12,000 m) above mean seal level
Drop Test 9.8' (3 m)
Dimensions 6.88 x 3.34 x 2.95" (175 x 85 x 75 mm)
Weight 0.56 lbs (255 g)
IP Rating IP 54 per IEC 60529
Vibration and Shock IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
EMC EN 61326-1:2006 EN 61326-2:2006
Standards and Agency Approval Compliance: EN/IEC 61010-1: 2001
Laser safety: FDA and EN 60825-1 Class II
Click here for complete specifications on the Fluke 62 MAX

What's included with the Fluke 62 MAX

  • Thermometer
  • Instruction Sheet
  • Three-Year Warranty

Fluke: How to use the 62 MAX

Fluke Infrared Thermometers: What is Distance-to-Spot Ratio?


This explanatory video will go over how does distance-to-spot ratio affects the ability of an infrared thermometer to measure the temperature of a surface from a distance. Also, these devices are equipped with laser pointers.

How To Configure the Laser Pointer on your Fluke 62 MAX Infrared Thermometer


Using the laser pointer is easy! Press and release the green trigger and then push the SEL button multiple times until "LAS On" appears on the display. Use the SET button to turn it On or Off. Watch the video to learn the rest!

Fluke: Emissivity with Polished Metals


Learn how to take measurements (correctly!) on polished metals as they do not radiate very efficiently. Watch this instructional to see how they test out this measurement.

Introducing the Fluke 62 MAX/MAX+ Infrared Thermometer


This video provides an overview of uses for the thermometer while being used in the field. It is water-resistant, drop tested to 3 meters, dust resistant and so much more!
