Fluke 373 True RMS AC Clamp Meter, 600 A-
Downloads: datasheet manual

Ask an Expert

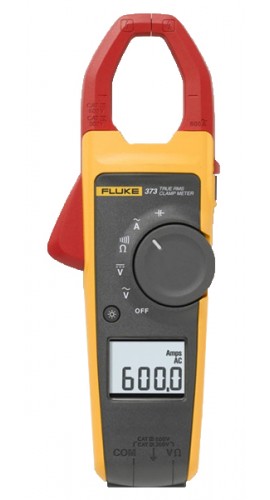

Fluke 373 True RMS AC Clamp Meter, 600 A

Model: 373

Ideal for many AC only current measurement situations, this True RMS AC clamp meter measures up to 600 A AC and 600 V ac or DC. This unit automatically sets the right measurement range depending on the present voltage when you power up. It can as well measure DC voltage of up to 600 V and resistance up to 6000 Ω.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Fluke 374 FC True RMS AC/DC Clamp Meter, 600 A, 1000 V-

Fluke 374 FC True RMS AC/DC Clamp Meter, 600 A, 1000 V

Model: 374 FC | Order No: 374FC

Measure AC and DC current to 600 A with the fixed jaw clamp on this True RMS clamp meter. This unit also measures AC and DC voltage to 1000 V and resistance to 6000 Ω, and enables you to troubleshoot non-linear signals. Additionally, this unit is Fluke Connect compatible.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.


Fluke 373 Offers

The Fluke 373 Clamp Meter offers improved performance perfect for a wide range of current measurement situations. With true-rms ac voltage and current measurements, the Fluke 373 can read up to 600 V ac and 600 A in ac and dc modes.
Key Features
  • True-RMS and state of the art signal processing allows for use in noisy electrical environments while providing stable readings on non-linear signals
  • Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change positions while taking a measurement
  • Capacitance for troubleshooting start and run motor capacitors.

The Fluke 373 is part of Fluke's new Clamp Meter line that includes: 381, 376, 375, 374 & 365.

Replacing the Fluke 334
The Fluke 373 clamp meter is the direct replacement for the Fluke 334 clamp meter. The Fluke 373 includes all the features of the 334 (except inrush), but also includes:
  • CAT IV 300, CAT III 600 V
  • True-RMS
  • 1000 μF

Fluke 373 Specifications

AC Current
Range 600.0 A
Resolution 0.1 A
Accuracy 2% ± 5 digits (48 to 62 Hz)
Crest Factor (50/60 Hz) 2.5 at 600 A
AC Voltage
Range 600.0 V
Resolution 0.1 V
Accuracy 1.0% ± 5 digits (48 to 62 Hz)
DC Voltage
Range 600.0 V
Resolution 0.1 V
Accuracy 1% ± 5 digits
Resistance
Range 600.0/6000 Ω
Resolution 0.1/1 Ω
Accuracy 1% ± 5 digits
Continuity Beeper 30 Ω
Capacitance
Range 10.0 to 100.0 μF/1000 μF
Resolution 0.1/1 μF
Accuracy 1.9% ± 2 digits
Environmental Specifications
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Operating Humidity Non condensing at 50°F (<10°C)
≤90% RH at 50 to 86°F (10 to 30°C)
≤75% RH at 86 to 104°F (30 to 40°C)
≤45% RH at 104 to 122°F (40 to 50°C)
(Without condensation)
Operating Altitude 9842.52' (3000 m)
Storage Altitude 39,370.1' (12,000 m)
EMI, EMC Meets all applicable requirements in EN61326-1:2006
Temperature Coefficients Add 0.1 x specified accuracy for each °C above 28°C or below 18°C
Safety Compliance ANSI/ISA S82.02.01:2004
CAN/CSA-C22.2 No. 61010-1-04
IEC/EN 61010-1:2001, 600V CAT III, 300V CAT IV
Pollution Degree 2
EN/IEC 61010-2-32:2002
EN/IEC 61010-031:2002/A1:2008
General Specifications
Batteries 2 x AA
NEDA 15 A
IEC LR6
Dimensions 9.1 x 3.35 x 1.8" (232 x 85 x 45 mm)
Weight 0.82 lbs (370 g)
Click here for complete specifications on the Fluke 373

What's included with the Fluke 373

  • Clamp Meter
  • Test Leads
  • Carrying Case
  • 5 x AA Alkaline Batteries
  • Coated Instruction Card
  • Safety Information Sheet
  • Users Manual
