Model: 369 FC | Order No: 369FC

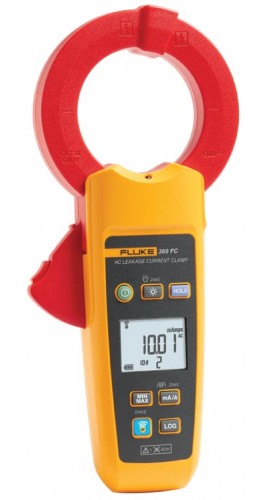

Detect, document, record, and compare leakage current readings with this True RMS leakage current clamp meter. It features large diameter jaws of 2.4" (61 mm) that accurately capture very small leakage signals. Additionally, this unit is Fluke Connect compatible.
Reduce downtime - find leakage currents without taking equipment offline
This True RMS leakage current clamp meter helps users detect, document, record, and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, all without taking equipment offline.
It features a large 2.4" (61 mm) diameter jaw for work with large conductors. The jaw is fully shielded to capture very small leakage signals and minimize external electromagnetic interference.
Also, this product offers wireless data connectivity via Fluke Connect, which enables you to track changes in leakage current over time, helping you to identify potential problems before they turn into major failures.
|Measurement Function||Alternating current|
|AC Ampere Range||3, 30, 300 mA
3, 30, 60 A
|Range Selection||mA/A: Manual selection
3/30/300 mA: Automatic selection
3/30/60 A: Automatic selection
|Accuracy - Filter Activated (40 to 70 Hz), Filter Off (40 to 1 kHz)||3 mA to 30 A: 1% + 5 digits
60 A: 2% + 5 digits
|Frequency||40 Hz to 1 kHz|
|Display (LCD)||Digital readout: 3300 count|
|Display Refresh Rate||4 times/sec|
|Maximum Conductor Diameter||2.4" (61 mm)|
|Battery||2 x AA, IEC LR6, NEDA 15A, alkaline|
|Battery Life||Expected battery life, without using backlight and spotlight, is more than 150 hours|
|Automatic Shut-Down||Meter automatically shuts down after 15 minutes of inactivity|
|Operating Temperature||14 to 122°F (-10 to 50°C)|
|Storage Temperature||-40 to 140°F (-40 to 60°C)|
|Operating Humidity||Non-condensing at <50°F (<10°C)
90% relative humidity at 50 to 86°F (10 to 30°C)
75% relative humidity at 86 to 104°F (30 to 40°C)
45% relative humidity at 104 to 122°F (40 to 50°C)
|Operating Altitude||6561.7' (2000 m)|
|Storage Altitude||39,370.1' (12,000 m)|
|Dimensions||10.1 x 4.6 x 1.8" (257 x 116 x 46 mm)|
|Weight||1.3 lbs (600 g)|
|General Safety||IEC 61010-1: Pollution Degree 2|
|Measurement Safety||IEC 61010-2-032: CAT III 600 V/CAT IV 300 V|
|Current Sensor Action Category||IEC 61557-13: Class 2, ≤30 A/m|
Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.
Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
