Fluke 323 True RMS Clamp Meter, 400A, AC

Model: 323

True-RMS measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians.

to your 323


$116.99 USD

was $129.99

Availability: 10+ in Stock
Need a quote?

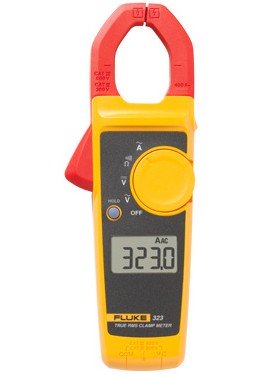

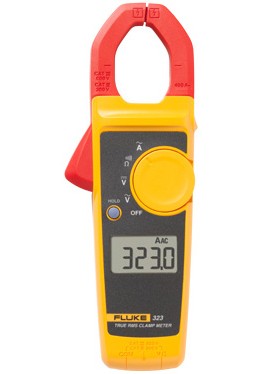

Fluke 323 True-rms Clamp Meter


True-rms measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians. The Fluke 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.


Measurement capability
  • 400 A ac current measurement
  • 600 V ac and dc voltage measurement
  • True-rms ac voltage and current for accurate measurements on non-linear signals
  • Resistance measurement up to 4 kΩ with continuity detection

Features
  • Slim, ergonomic design
  • CAT IV 300V/CAT III 600 V safety rating
  • Hold button
  • Two-year warranty
  • Soft carrying case

Included accessories

  • Test leads
  • Soft case
  • User's manual
Measurement capability
  • 400 A ac current measurement
  • 600 V ac and dc voltage measurement
  • True-rms ac voltage and current for accurate measurements on non-linear signals
  • Resistance measurement up to 40 kΩ with continuity detection

Features
  • Slim, ergonomic design
  • CAT IV 300V/CAT III 600 V safety rating
  • Hold button
  • Two-year warranty
  • Soft carrying case

Fluke 323 Specifications

AC Current Accuracy 2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz)
AC Voltage 600V
AC Voltage Accuracy 1.5 % ± 5 digits
DC Voltage 600V
DC Voltage Accuracy 1.0 % ± 5 digits
Resistance Range 400.0 Ω/ 4000 Ω
Resistance Accuracy 1.0 % ± 5 digits
Continuity ≤ 70 Ω
AC response True-rms
Data hold Yes
Size 207 x 75 x 34 mm
Weight 265 g
Category Rating CAT III 600V, CAT IV 300V
Click here for complete specifications on the Fluke 323

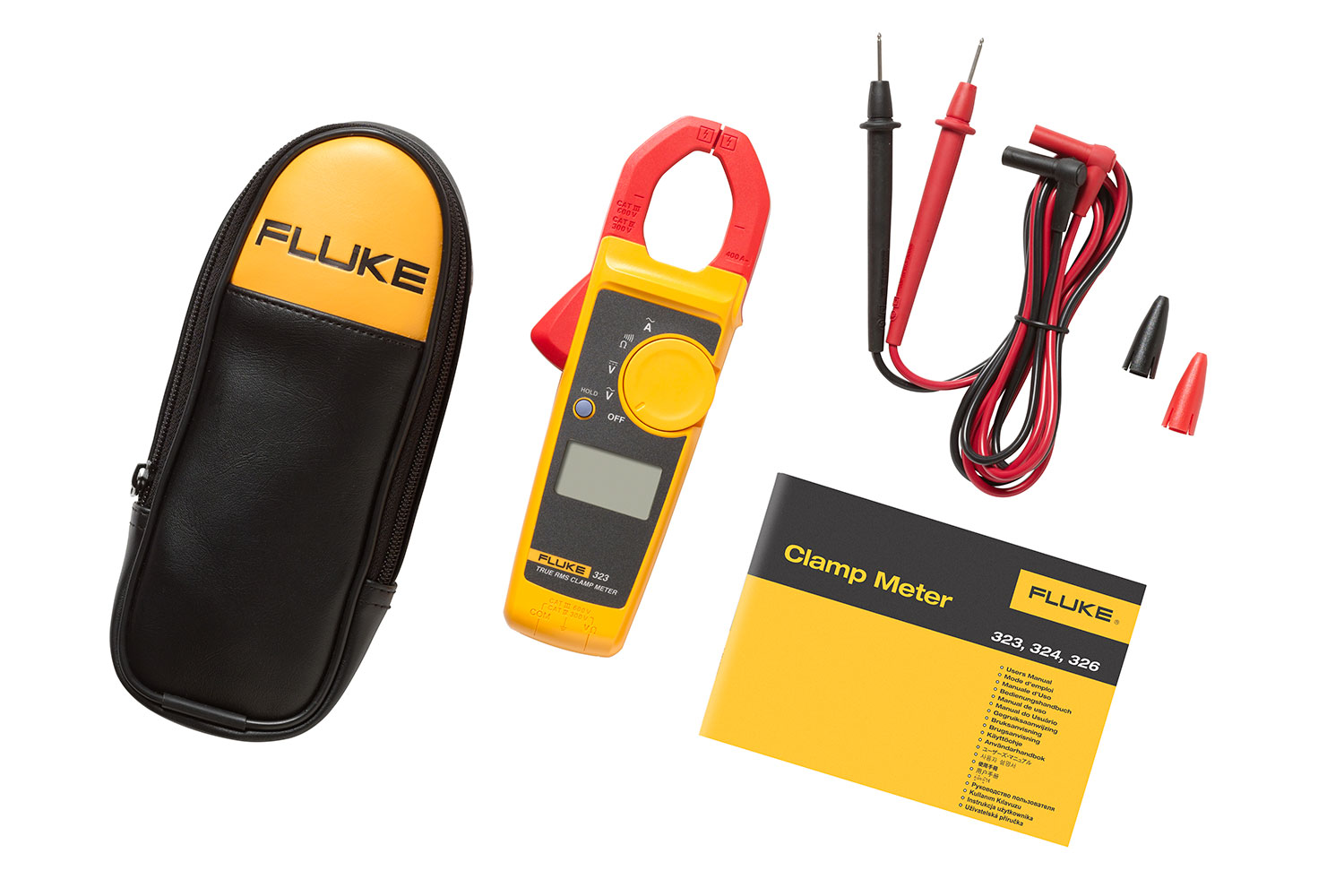

What's included with the Fluke 323

  • Fluke 323 True RMS Clamp Meter
  • Test Leads
  • Soft Case
  • User Manual
