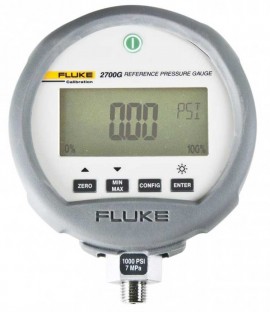

Fluke 2700G-BG700K/C Reference Pressure Gauge with Accreditation, -12 to 100 PSI

Model: 2700G-BG700K/C

Rugged and easy to use. Ideal for a wide variety of applications and offers best in class measurement performance suitable for calibrating pressure measurement devices such as pressure gauges, transmitters, transducers, and switches.

$1,780.00 USD

Availability:
2 to 3 Weeks
Need a quote?




Can be combined with the P5500 series of comparison test pumps to make a complete pressure calibration system. The unique test port design of the P5500 series allows for a hand tight connection without the use of PTFE tape.

Features

  • Easy-to-use interface that allows you to configure the sampling rate, tare value, damping, and auto-off time interval as well as reset the min/max pressure
  • View the remaining battery life
  • Select from 21 different standard engineering units, including bar, in H2O, kPa, MPa, and psi

Application Selection Guide

Fluke 754 Documenting Process Calibrator with HART communication Fluke 721 Dual Sensor Pressure Calibrators Fluke 719PRO Electric Pressure Calibrators Fluke 719 Pressure Calibrator Fluke 718 Series Pressure Calibrators Fluke 717 Series Pressure Calibrators Fluke 700G Series Pressure Test Gauge Fluke 3130-G2M Portable Pneumatic Pressure Calibrators Fluke 2700G Series Pressure Gauges Fluke Deadweight Testers
Model number 754 721/​721Ex 719Pro 719 718 717 700G 3130 2700G Dead-weight Testers
Application
Calibrating pressure transmitters (field) Ideal
Calibrating pressure transmitters (bench) Ideal
Calibrating HART Smart transmitters Ideal
Documenting pressure transmitter calibrations Ideal
Testing pressure switches in the field Ideal
Testing pressure switches on the bench Ideal
Documenting pressure switch tests Ideal
Testing pressure switches with live (voltage) contacts Ideal
Gas custody transfer computer tests Ideal
Verifying process pressure gauges (field) Ideal
Verifying process pressure gauges (bench) Ideal
Logging pressure measurements Ideal
Testing pressure devices using a reference gauge Ideal
Hydrostatic vessel testing Ideal
Leak testing (pressure measurement logging) Ideal
Pressure Calibration Selection Guide

Fluke 2700G-BG700K/C Specifications

Pressure Connection 1/4 in NPT Male
Housing Cast ZNAL
Display 5-1/2 digits, 16.53 mm (0.65") high 20-segment bar graph, 0 to 100%
Range -12 to 100 psi, -80 to 700 kPa
Resolution 0.01 psi, 0.001 bar
Uncertainty (k=2) Positive Pressure
Burst Pressure 1000 psi, 7 MPa
Media Compatibility Note 2
Power Source 3 x AA Alkaline Batteries
Battery Life 75 hours
Weight 0.56 kg (1.22 lbs)
Dimensions 12.7 x 11.4 x 3.7cm (5 x 4.5 x 1.5")
Click here for complete specifications on the Fluke 2700G-BG700K/C

What's included with the Fluke 2700G-BG700K/C

  • Fluke 2700G-BG700K/C Reference Pressure Gauge with Accreditation, -12 to 100 PSI
