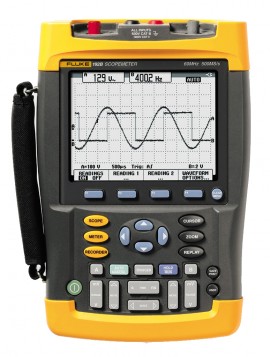

Fluke 190-502/AM/S ScopeMeter Portable Oscilloscope Test Tool Kit, 2 Channel, 500MHz

Model: 190-502/AM/S

Designed for plant maintenance engineers and technicians, the 190 ScopeMeter Series goes into harsh and dirty industrial conditions to test everything from microelectronics to power electronics applications.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 190-502-III-S Color ScopeMeter with FlukeView-2 software package, 500 MHz, 2 channels

Model: 190-502-III-S

Effortlessly diagnose, view, and capture complex waveforms, induced noise, intermittent events, signal fluctuations, or drift with this high-performance portable oscilloscope. Rugged and easy to use, this oscilloscope features a bright color display, 500 MHz, two channels, and includes the FlukeView-2 software package.

Learn More

Fluke 190 Series II -- 20 years of ScopeMeter® Test Tool Innovation

As the first two and four-channel portable scopes safety rated CAT III 1000V / CAT IV 600V, the Fluke ScopeMeter® 190 Series II combines an unprecedented level of performance, ruggedness, and portability. You can choose from 60MHz, 100MHz, 200MHz or 500MHz bandwidth models, with real-time sampling rates up to 5 GS/s and 200 ps resolution to capture noise and other disturbances. Both models feature deep memory-up to 10,000 samples per channel- so you can examine very small parts of the waveform in detail. And both are IP-51 rated to withstand dust, drips, humidity, and wide temperature variations. Fluke ScopeMeter test tools are hand-held battery operated, designed to meet the demands of field service professionals.

Fluke 190-502/AM/S Specifications

Bandwidth	500 MHz
Number of Channels	2 Channels
Real-time Sample Rate	5 GS
Inputs	4 scope or 2 scope plus DMM input
Independently floating isolated inputs	Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Input sensitivity	2 mV-100 V/div
Trigger types	Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger Source	Any scope input channel, or external via DMM input on 190-XX2, 2 channel models
Glitch capture	8 ns
Scope measurements	Cursor: 7, Automatic: 30
Maximum record length	ScopeRecord mode: 30,000 pts, Scope mode: 10,000 pts per input
Persistence	Digital persistence giving analog oscilloscope-like waveform decay
Waveform Compare	Waveform reference with automatic Pass/Fail testing

Click here for complete specifications on the Fluke 190-502/AM/S

What's included with the Fluke 190-502/AM/S

Fluke 190-502/AM/S ScopeMeter Portable Oscilloscope Test Tool Kit
BC190 Battery
Charger/Mains Adapter
Li-ion Battery Pack
VPS410 Voltage Probe Sets
TL175 Test Leads
Hang Strap
Hand Strip
Multi-Language User's Manual on CD-ROM
FlukeView Software
Carrying Case

Fluke ScopeMeter 190 Series II Portable Oscilloscopes Demo Circuit: Overview

This video showcases the main features and functions of these portable oscilloscopes. Additionally, the user can perform timing or amplitude related measurements on three phases or three-axis control systems, or compare and contrast multiple test points in a circuit under test.

How To Use Instant Replay On a Fluke 190 ScopeMeter Oscilloscope

In this video, the user learns how to capture random events using triggering and show the results in instant replay. The scope meter oscilloscope can quickly and easily capture disturbances to make sense of your signals and eliminate the tedium of troubleshooting.

How To Create and Recall Waveforms Using the Fluke 190 Series Portable Oscilloscope

This video will serve as a step by step tutorial on how to set up waveforms with the oscilloscope, and how to return settings to factory default. Additionally, this instrument offers the same performance as a bench scope with feature-rich capabilities to tackle just about any troubleshooting task.

How to Synchronize a Fluke 190 Series Portable Oscilloscope with Basic Triggers

This video breaks down the process of synchronizing your portable oscilloscope with triggers. The TRIGGER function allows the user to synchronize their scopemeter with the signal the oscilloscope is connected to and display waveforms on your instrument.

How To Startup and Reset Settings on the Fluke ScopeMeter Portable Oscilloscope

This video is a walkthrough on how to power up and perform a reset with the scopemeter. Ideal for plant maintenance engineers and technicians, this instrument goes into harsh and dirty industrial conditions to test everything from microelectronics to power electronics applications.

How To Transfer Data From a Fluke ScopeMeter Portable Oscilloscope onto a USB Drive

This video is a tutorial on how to transfer data from a fluke scope meter directly onto a USB drive. The oscilloscope comes with an isolated USB host port for direct data storage from a USB to a computer.

How To Use the TrendPlot<sup>®</sup> Function on the Fluke ScopeMeter Portable Oscilloscope

In this video, the user learns how to set up the TrendPlot function to find intermittent faults. The function plots minimum and maximum peak values for up to 22 days, in any combination of voltages, amps, temperature, frequency, and phase for all four inputs.
