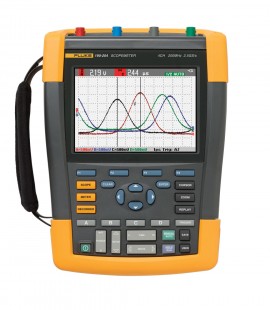

Fluke 190-102/AM ScopeMeter Oscilloscope, 2 Channel, 100MHz

Model: 190-102/AM

Performs in harsh, dirty, and hazardous industrial conditions, users can test everything from micro-electronics to power electronics applications. A combination of the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Additionally, it features a rise time of 3.5 ns.

Add In-House Traceable Calibration to your 190-102/AM


1 to 2 Weeks

$3,964.99 USD

Need a quote?




The new Fluke 190-102 Series II ScopeMeter is a 2-channel portable hand held oscilloscope built for CAT III & IV environments. It easily works with 3-phase applications for many industrial applications like motors and variable speed drives and includes all the key features of the original Fluke 190 series ScopeMeters.
The Fluke 190-102/AM model is a 100MHz bandwidth model that provides real-time sampling rates up to 1.25GS/s and a 400ps resolution to capture noise and other disturbances.

Applications

  • Automation: PLC's, sensors, transducers, motion controllers, rotary encoders, scanners, readers, printers
  • Medical Imaging: XRay, MRI, ultrasound imaging equipment
  • Avionics: Flight line navigation systems, communication systems, radars, on board aircraft control systems
  • A/V and Security Systems: Retail security devices, surveillance and monitoring equipment, RFID

Fluke 190 Series II ScopeMeters

The new 2-channel Fluke 190 series of portable oscilloscopes are designed for the industrial plant maintenance professionals servicing, installing or maintaining heavy duty electrical equipment, electro-mechanical machinery and plant automation control systems. The 190 series II ScopeMeters are the first portable oscilloscopes with a 1000 V CAT III / 600 V CAT IV safety rating.
Fluke ScopeMeter test tools are hand held, battery operated portable instruments with a sealed, dust and drip proof case that is IP 51 rated, designed to be used in harsh environments.
The new Fluke 190 series II now includes new features for troubleshooting today's industrial power electronic systems and enhancements that will improve usability and overall satisfaction.

New Features and Functions for Industrial Equipment Maintenance Applications

  • IEC 61010 1000V CAT III / 600V CAT IV Safety rating
  • 2 fully isolated floating input channels with up to 1.25 GS/s real time sampling rate
  • 8ns Glitch detect
  • 10,000 sample deep memory per channel for displaying high resolution waveform details
  • 2 input channels provide: 2 meter measurements, 2 TrendPlot traces, 2 ScopeRecord traces, capturing or logging 2 inputs over time
  • Live Zoom with full resolution
Customer Driven Enhancements
  • Hi-capacity Li-ion battery with up to four hours of operation
  • Battery access door to easily swap out batteries for extended operation
  • Two electrically isolated USB ports. Mini USB-A for PC connectivity and a USB memory device port
  • Security slot to lock down instrument using standard Kensignton PC lock
  • Screen insert for standard camera mounting accessories
Plus all the Key Features and Benefits of the existing ScopeMeter 190 Series
  • Up to 100 MHz bandwidth, 1.25 GS/s real time sample rate up to 400 pico seconds resolution
  • Built-in multimeter
  • Connect and View to easily trigger on and display even complex waveforms
  • TrendPlot and ScopeRecord to capture or plot waveforms and measurements over extended time spans
  • Reply Last 100 Screen, to go back in time to see waveform anomalies
  • Environmentally tested to meet IP51 dusty and drip proof rating and withstand 3G vibration or 30g shock

Other Fluke 190 Series II (2 Channel) models:

  • Fluke 190-102/AM/S - This model includes the Fluke C290 hard case and full version of FlukeView for ScopeMeter software
  • Fluke 190-062/AM - This is the 60MHz series model
  • Fluke 190-062/AM/S - This model includes the Fluke C290 hard case and full version of FlukeView for ScopeMeter software
  • Fluke 190-202/AM - This is the 200MHz series model
  • Fluke 190-202/AM/S - This model includes the Fluke C290 hard case and full version of FlukeView for ScopeMeter software

Fluke 190-102/AM Specifications

Functions Specifications
Bandwidth 100 MHz
Number of Channels 100 MHz: 2 channels
Real-Time Sample Rate 1.25 GS/s
Inputs 2 scope plus DMM input
Independently Floating Isolated Inputs Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase Range 5 ns - 2 min/div
Input Sensitivity 2 mV - 100 V/div
Trigger Types Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
Trigger Source Any scope input channel
Glitch Capture 8 ns
Scope Measurements Cursor: 7
Automatic: 30
Maximum Record Length ScopeRecord mode: 30,000 pts
Scope mode: 10,000 pts per input
Persistence Digital persistence giving analog oscilloscope-like waveform decay
Waveform Compare Waveform reference with automatic Pass/Fail testing
DMM Specifications
Meter Inputs (Also used as External Trigger Input for the Oscilloscope Mode) 0.16" (4 mm) banana inputs, fully isolated from scope inputs and from scope ground
Maximum Resolution 5000 counts
Measurements VDC, VAC rms, VAC + DC rms, Resistance, Continuity, Diode Test, Current (through clamp or shunt), Temperature °C or °F (using optional converter)
Memory Screen + Setup: 30
Recording: 10
Display 6" (153 mm) full color LCD with fast update rate
Environmental Specifications
Operating Temperature 32 to 104°F (0 to 40°C), including batteries
32 to 122°F (0 to 50°C), excluding batteries
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Altitude Up to 6666' (2000 m) for CAT IV 600 V, CAT III 1000 V
Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V
Mechanical and General Specifications
Li-Ion Battery BP290 2400 mAh battery up to 4 hours included standard
Dimensions 10.6 x 7.5 x 2.75" (270 x 190 x 70 mm)
Weight 4.85 lbs (2.2 kg)
Safety Specifications
Electrical Safety 1,000 V CAT III/600 V CAT IV (EN61010-1)
Click here for complete specifications on the Fluke 190-102/AM

What's included with the Fluke 190-102/AM

  • ScopeMeter Oscilloscope
  • Voltage Probe Sets
  • Test Lead Set
  • Hand Strap (Affixed to Instrument)
  • Hangstrap
  • FlukeView ScopeMeter® Demo Package
  • USB Interface Cable
