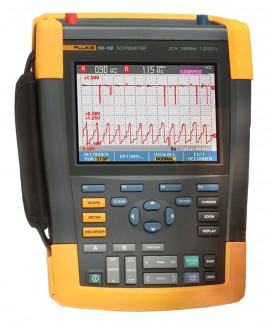

Fluke 190-102/AM/S ScopeMeter Oscilloscope with SCC-290 kit

The new Fluke 190-102/S Series II ScopeMeter is a 2-channel portable hand held oscilloscope built for CAT III & IV environments. It easily works with 3-phase applications for many industrial applications like motors and variable speed drives and includes all the key features of the original Fluke 190 series ScopeMeters, FlukeView software and case.

The Fluke 190-102/AM/S model is a 100MHz bandwidth model that provides real-time sampling rates up to 1.25GS/s and a 400ps resolution to capture noise and other disturbances.

Applications

• Automation: PLC's, sensors, transducers, motion controllers, rotary encoders, scanners, readers, printers

• Medical Imaging: XRay, MRI, ultrasound imaging equipment
• Avionics: Flight line navigation systems, communication systems, radars, on board aircraft control systems
• A/V and Security Systems: Retail security devices, surveillance and monitoring equipment, RFID

Fluke 190 Series II ScopeMeters

The new 2-channel Fluke 190 series of portable oscilloscopes are designed for the industrial plant maintenance professionals servicing, installing or maintaining heavy duty electrical equipment, electro-mechanical machinery and plant automation control systems. The 190 series II ScopeMeters are the first portable oscilloscopes with a 1000 V CAT III / 600 V CAT IV safety rating.

Fluke ScopeMeter test tools are hand held, battery operated portable instruments with a sealed, dust and drip proof case that is IP 51 rated, designed to be used in harsh environments.

The new Fluke 190 series II now includes new features for troubleshooting today's industrial power electronic systems and enhancements that will improve usability and overall satisfaction.

New Features and Functions for Industrial Equipment Maintenance Applications

• IEC 61010 1000V CAT III / 600V CAT IV Safety rating
• 2 fully isolated floating input channels with up to 1.25 GS/s real time sampling rate
• 8ns Glitch detect
• 10,000 sample deep memory per channel for displaying high resolution waveform details
• 2 input channels provide: 2 meter measurements, 2 TrendPlot traces, 2 ScopeRecord traces, capturing or logging 2 inputs over time
• Live Zoom with full resolution

Customer Driven Enhancements

• Hi-capacity Li-ion battery with up to four hours of operation
• Battery access door to easily swap out batteries for extended operation
• Two electrically isolated USB ports. Mini USB-A for PC connectivity and a USB memory device port
• Security slot to lock down instrument using standard Kensignton PC lock
• Screen insert for standard camera mounting accessories

Plus all the Key Features and Benefits of the existing ScopeMeter 190 Series

• Up to 100 MHz bandwidth, 1.25 GS/s real time sample rate up to 400 pico seconds resolution
• Built-in multimeter
• Connect and View to easily trigger on and display even complex waveforms
• TrendPlot and ScopeRecord to capture or plot waveforms and measurements over extended time spans
• Reply Last 100 Screen, to go back in time to see waveform anomalies
• Environmentally tested to meet IP51 dusty and drip proof rating and withstand 3G vibration or 30g shock

What's Included

• Fluke BC190 Power adapter
• Fluke BP290 Li-ion battery pack
• VPS410-R probe red
• VPS410-B probe blue
• USB cable A - B (mini)
• Hanging strap
• Handstrap affixed to instrument (user selectable for left or right handed use)
• CD user manual with FlukeView ScopeMeter software demo version
• Statement of calibration practice
• Fluke C290 hard shell carrying case
• Fluke SW90W, FlukeView for ScopeMeter for Windows with registration key code
