Model: TIR105-9HZ
For Building Diagnostics. Features a 160 x 120 9Hz infrared detector with a 0.08°C thermal sensitivity and a -20 to 150°C (-4 to 302°F) temperature range.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Fluke's TiXX Series of Thermal Imagers are now compatible with the new Fluke CNX series of Wireless Test Tools. Fluke has released new Firmware for the TiXX series that allows the thermal imagers to communicate with the CNX Wireless System.
You can learn more about the CNX Series here.
Ultra sleek, intelligent design meets the performance you need for building diagnostics.

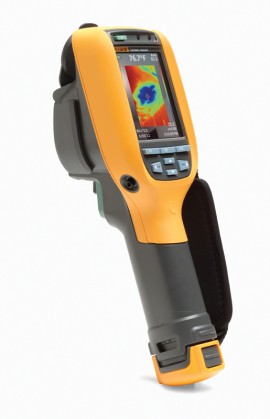

Searching for air leaks, hidden moisture, construction defects, or other building issues? The Fluke TiR105 Thermal Imager delivers a huge competitive advantage-it allows you to work faster, more efficiently and document your findings right away.
| IR resolution (FPA size) | 160 x 120 FPA Uncooled Microbolometer |
| Spectral band | 7.5 µm to 14 µm (long wave) |
| Capture or refresh rate | 9 Hz |
| NETD (Thermal sensitivity) | < 0.08°C at 30°C target temp (80 mK)</td> |
| FOV (Field of view) | 22.5°H x 31°V |
| IFOV (Spatial resolution) | 3.39 mRad |
| Temperature measurement range (not calibrated below -10°C) | -20°C to + 150°C (-4°F to 302°F) |
| Temperature measurement accuracy | ± 2°C or 2 % (at 25°C nominal, whichever is greater) |
| Focus mechanism | Focus-free 1.2 m (4 ft) and beyond |
| IR Fusion ® technology | PIP (1.2 m (4 ft) to 4.6 m (15 ft)), FULL IR, FULL VISIBLE |
| Color alarms | - |
| Standard palettes | Blue-Red, Ironbow, Grayscale, Amber |
| Ultra Contrast™ palettes | - |
| Hot/cold markers | - |
| User definable spot markers | In SmartView® only |
| Centerpoint | Yes |
| Centerbox (MIN/AVG/MAX) | - |
| Level and span control | Manual and auto |
| Minimum span in auto mode | 2.5°C |
| Minimum span in manual mode | 2.0°C |
| Minimum IR focus distance | 122 cm (48 in) |
| Weight | 0.726 kg (1.6 lb) |
| Size | 28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in) |
| LCD display | 3.5 inch diagonal (portrait format) |
| Visible camera | 2 megapixel industrial-grade |
| Minimum parallax | ~122 cm (48 in) |
| IR-PhotoNotes™ annotation system | - |
| Laser pointer | Yes |
| Torch | Yes |
| Electronic (cardinal) compass | - |
| Emissivity correction | Yes |
| Transmission correction | - |
| Background (reflected) compensation | Yes |
| Voice annotation (audio) | - |
| Multi-mode video output | - |
| Multi-mode video recording (standard AVI with MPEG encoding) | - |
| Multi-mode video recording (radiometric .IS3) | - |
| Memory review | Thumbnail review |
| Battery (field-replaceable, rechargeable) | One |
| Battery life | 4+ hours (each)* |
| External battery charging base | Optional (accessory) |
| Charging power supply | Yes |
| Drop test | 2 meter (6.5 feet) |
| Ingress protection (IP) rating (IEC 60529) | IP 54 |
| Est. calibration cycle | Two-years |
| Multifunction card reader | - |
| Memory storage | 2 GB SD memory card |
| Direct download capability | mini USB direct download |
| Operating temperature range | -10°C to +50°C (14°F to 122°F) |
| Storage temperature range | -20°C to +50°C (-4°F to 122°F) |
| Operating humidity | Operating and storage 10 % to 95 %, non-condensing |
| Vibration and shock | 2G, IEC 68-2-26 and 25G, IEC 68-2-29 |
| Safety standards | CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01 |
| C Tick | IEC/EN 61326-1 |
| EMI, RFI, EMC | EN61326-1; FCC Part 5 |
| User manuals | Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Dutch, and Hungarian |
| Standard warranty period | Two-years |
| Extended warranty and service plans | Yes |
Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.
Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
Click on a category to view a selection of compatible accessories with the Fluke TiR105 Thermal Imager.
