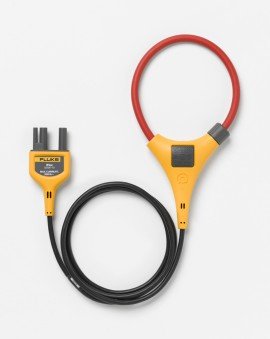

Fluke i2500-10 iFlex Flexible 10" Current Probe

Model: i2500-10

The iFlex 2500 is a 10" flexible current probe that offers a measuring capability up to 2500 A AC current and up to 1000 V AC.

Fluke i2500-10 Specifications

Specifications
i2500-18 and i2500-10	Range	Resolution	Accuracy
AC Current*	2500 A	0.1 A	3% ± 5 digits**
Frequency*	500 Hz	0.1 Hz	0.5% ± 5 digits
External magnetic field rejection (with cable >10 cm from the coupling)	40 dB
Inrush*	*
Safety rating	CAT III 1000 V, CAT IV 600 V

*When used with compatible Fluke meter. Accuracy stated includes probe and meter accuracy.
** For position accuracy at non-optimum positions, see Position sensitivity specifications table "A"

Position Sensitivity Specifications
Distance from Optimum	i2500-10	i2500-18	Additional iFlex error
A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	± 0.5%
B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	± 1.0%
C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	± 2.0%

Click here for complete specifications on the Fluke i2500-10

What's included with the Fluke i2500-10

Fluke i2500-10 iFlex Flexible 10" Current Probe

How To Set Up the Fluke iFlex Flexible Current Probe

This video is designed to demonstrate how to set up and use your Fluke iFlex flexible current probe. It provides users to capability to take measurements in tight areas. Additionally, it is compatible with a variety of Fluke products.

Using the Fluke iFlex Flexible Current Probe in Tight Areas

This video demonstrates how this flexible current probe is used for awkward and tight spaces. For this specific scenario, it is paired with the Fluke 381. Additionally, it is also compatible with a variety of Fluke products.

Using the Fluke iFlex Flexible Current probe with the Fluke 376 FC True RMS Clamp Meter

This video demonstrates the versatility of the Fluke iFlex flexible current probe. Additionally, it is compatible with a variety of Fluke meters.
