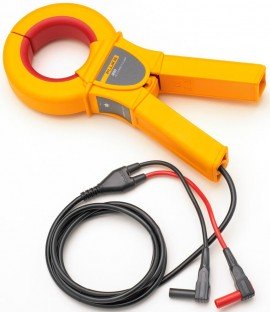

Fluke i800 AC Current Clamp Probe

Model: I800

Extends current capability of a DMM to 800A AC.

Traceable Calibration Certificate for your I800 AC Current Clamp Probe


1 to 2 Weeks

$362.67 USD

was $444.99





Fluke I800 Offers

The Fluke i800 AC Current Clamp Probe is a clamp-on AC current probe designed to extend the current measuring capability of a digital multimeter to 800 amperes AC.
The clamp is compatible with a DMM that accepts 4mm shrouded banana plugs and has an AC milliamp range.
Features:
  • Measures AC current from 100mA to 800 A rms
  • 30 Hz to 10 kHz frequency range
  • CAT III 600 V rating
  • Accepts up to 54 mm (2.1 in) diameter conductor size
  • 1000:1 conversion factor for easy calculation
  • Rugged positive action design
  • Weight : .85 kg (1.87 lb)
  • Dimensions (L x W x H) : 11.8 x 26.67 x 7.6 cm (4.6 x 10.5 x 3 in)

Fluke I800 Specifications

Specifications
Nominal current range

800 A rms
Continuous current range

100 mA to 800 A rms
Maximum Non-Destrucive Current

1500 A rms (50/60 Hz)
Lowest measurable current

100 mA
Basic accuracy

±1% of reading
Useable frequency

30 Hz - 10 kHz (-3dB)
Output level(s)

1 mA / A

Safety Specifications
Safety

CAT III 600 V
Maximum voltage

600 V ac rms or dc

Mechanical & General Specifications
Warranty

1 year
Maximum conductor diameter

54 mm (2.13 inches)
Output cable length

1.6 m (63 inches)
Lead connector

Shrouded banana plugs

What's included with the Fluke I800

  • Fluke i800 AC Current Clamp Probe
