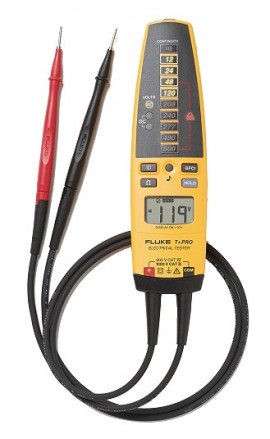

Fluke T+PRO CAN Electrical Tester

Model: T+PRO/CAN

Backlit LCD. Features 4 ways to indicate voltage and continuity. GFCI trip button, resistance, and phase rotation. CAT IV 600V, CAT III 1000V. Canadian voltage indicator.

This product has been discontinued. Click here for the replacement model(s).



Fluke T+PRO/CAN Offers

Has your solenoid tester ever over-heated, melted, burned out, or worse?
The new, full-featured Fluke T+PRO Electrical Tester offers all the advantages of a traditional solenoid tester, with added functionality, but none of the typical drawbacks.
The Fluke T+PRO Electrical Tester is the ideal, full-featured tester for the demanding commercial and industrial electrician. With voltage measurement, continuity, built-in flashlights, GFCI trip capability, and Fluke's legendary ruggedness and reliability, the tester is an excellent choice for most residential, commercial, and industrial applications.
The Fluke T+PRO Electrical Tester comes with a rotary field indicator for troubleshooting three-phase systems, resistance measurement to 9.99 KOhms, as well as a backlit LCD display for easier viewing.
The Fluke T+PRO helps electricians comply with NPFA 70E Article 110.9 (A), which states that "Test equipment shall be rated for circuits and equipment to which they will be connected. The T+PRO Electrical Tester carries a CAT IV 600 V and CAT III 1000 V rating, appropriate for most environments where electricians work.
Applications:
  • Industrial electricians, commercial electricians, particularly those who work on low-voltage lighting.
  • Front-line electrical troubleshooting
  • AC/DC voltage measurement
  • Continuity testing
  • Testing GFCI circuits
  • Resistance measurement
  • Checking the rotation of electrical motors
  • Checking the proper set up of 3-phase systems
  • Troubleshooting low-voltage lighting

Fluke T+PRO/CAN Specifications

Specifications
Temperature
Operating -10 °C to 55 °C (14 °F to 131 °F)
Storage -30 °C to 60 °C (-22 °F to 140 °F)
Relative humidity

0 °C to 30 °C (32 °F to 86 °F): 90 %

30 °C to 40 °C (86 °F to 104 °F): 75 %

40 °C to 50 °C (104 °F to 122 °F): 45 %
Altitude
Operating 2,000 m (approx. 6,561.6 ft)
Storage 10,000 m (approx. 32,808.4 ft)
Battery type/life

AAA (2); 40 hours
Shock, vibration

Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument
Safety

ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV

Compliance to NFPA 70E*
AC Bandwidth

45 Hz to 66 Hz
Maximum working voltage

1000 V ac/dc
Maximum measurable voltage

600 V ac/dc
Duty cycle

Indefinitely for voltages up to 240 V

For voltages between 240 V and 600 V the duty cycle is 30 s on / 300 s off

For voltages above 240 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM of 300 s
Voltage hazard LED

LEDs turn on at voltages > 30 V ac/dc ± 35 %
LED voltage indication levels for Canadian version

12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 347 V, 480 V, 600 V
LEDs

LEDs turn on between 90 % and 100 % of the indicated voltage on the LED, except for the 12 V LED which turns on between 50 % and 100 %
LCD Accuracy on T+PRO only
AC voltage ± (3 % rdg + 2 digits)
DC voltage ± (2 % rdg + 2 digits)
Resistance ± (5 % rdg + 3 digits)
LCD Resolution

0.1 V for voltages < 50 V, 1 V for voltages ≥ 50 V

0.01 kΩ for resistance measurement (For T+PRO Only)
GFCI Test current

100 V - 150 V @ 6 mA - 9 mA ac, 150 V - 240 V < 12 mA
Standard input test current

< 5 mA
Size (HxWxL)

1.3 in x 2.15 in x 7.6 in (3.3 cm x 5.46 cm x 19.3 cm )
Weight

9.9 oz (0.28 kg)
Click here for complete specifications on the Fluke T+PRO/CAN

What's included with the Fluke T+PRO/CAN


  • User manual
  • Test lead wrap
  • Fluke TP2 test probes
  • 2 AAA batteries
