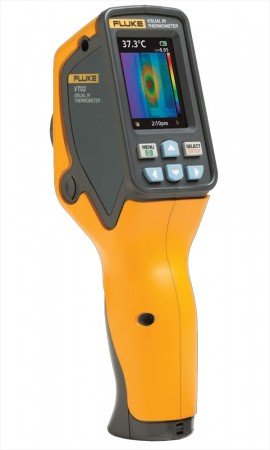

Fluke VT02 Visual IR Thermometer

Model: FLK-VT02 | Order No: VT02

The VT02 Visual IR Thermometer is a great in-between tool for those times when a single spot temperature reading isn't enough and a high-resolution thermal image is more than you need.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

REED R2165 Thermal Imaging Camera, 160 x 120-

REED R2165 Thermal Imaging Camera, 160 x 120

Model: R2165

Features a rugged IP65-rated double-molded housing and a 160 x 120 9Hz infrared sensor with 0.05°C thermal sensitivity.

The replacement product is only available on our affiliate GlobalTestSupply.com website. Don't worry your cart and information will be brought over.

Go to GlobalTestSupply.com

Not what you're looking for? Let’s do a search and help you find what you need.


Fluke VT02 Visual IR Thermometer

The VT02 Visual IR Thermometer combines the convenience of a spot thermometer with the visual advantage of a thermal imager creating a brand new tool category - a troubleshooting camera with infrared heat map.
Using hyper-thin pyroelectric technology, Fluke discovered a way to push the limits of this technology pioneering an array dense enough to create an infrared heat map. The VT02 Visual IR Thermometer is a great in-between tool for those times when a single spot temperature reading isn't enough and a high-resolution thermal image is more than you need, or can afford.
Now you can detect and capture issues instantaneously with digital and thermal blended images, pinpoint hot and cold spots with temperature markers, and document problems efficiently with SmartView® professional reporting software!

Warranty:

  • Standard two year warranty
  • Recommended calibration cycle: 2 years

Fluke FLK-VT02 Specifications

Temperature
Temperature measurement range-10 °C to +250 °C (14 °F to 482 °F)
Temperature measurement accuracy±2°C or ±2% of reading in °C, whichever is the greater (at 25°C nominal) as tested
On-screen emissivity correctionYes
On-screen reflected background temperature compensationYes
Imaging performance
Image capture frequency8 Hz
Detector typeUncooled Pyroelectric Ceramic
Thermal sensitivity(NETD)≤250mK
Infrared spectral band8µm to 14 µm
Visual Camera11,025 pixels
Minimum focus distance50 cm (19.6 in)
Field of View20° X 20°
Image presentation
PalettesIronbow, Rainbow, Rainbow High Contrast, gray scale and inverted gray scale.
Level and spanAuto
Viewing optionsBlending of the visual and the infrared from full infrared to full visual in 25% steps.
Hot spot and cold spot trackingYes
Image capture and data storage
Image captureImage will freeze allowing review before saving.
Storage medium2 Gb Micro SD card.
File format.is2 format saved to SD card. When imported to included SmartView® reporting software user can create professionalreports or images can be exported into multiple formats (BMP,DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF AND TIFF)
Memory reviewScroll through all saved images and view on screen.
General Specifications
Operating Temperature-10 °C to +45 °C (14 °F to 113 °F)
Storage Temperature-20 °C to +60 °C (-4 °F to 140 °F)
Relative humidity10 % to 90 % non-condensing
Display2.2 in diagonal
Controls and adjustmentsSelect color palette
User selectable temperature scale (°F/°C)
Time/date set
Emissivity selection
Reflected background temperature compensation
SoftwareSmartView® analysis and reporting software, included
Batteries4 AA
Battery life8 hrs
Power savingPower down after 10 minutes of inactivity.
Electromagnetic compatibilityCE
EN61326-1:2006
US FCCCFR47: 2009 Class A. Part 15 subpart B.
DropMIL-PRF-288000F; Class 2 section 4.5.5.4.2; 30cm
Size (H x W x L)21cm x 7.5cm x 5.5cm (8.3in x 3in x 2.2in)
Weight (battery included)<300 gm (10½ oz)
Warranty2 years
Click here for complete specifications on the Fluke FLK-VT02

What's included with the Fluke FLK-VT02

  1. Hard Case
  2. Micro SD Card
  3. Micro-SD conversion adapter to standard
  4. AA Batteries (4)
  5. Lanyard
  6. Printed Quick Start guides (EN, FR, DE, ES, Simplified Chinese)
  7. SmartView® analysis and reporting software CD
  8. Manual and Quick Start Guide on CD (21 languages)
